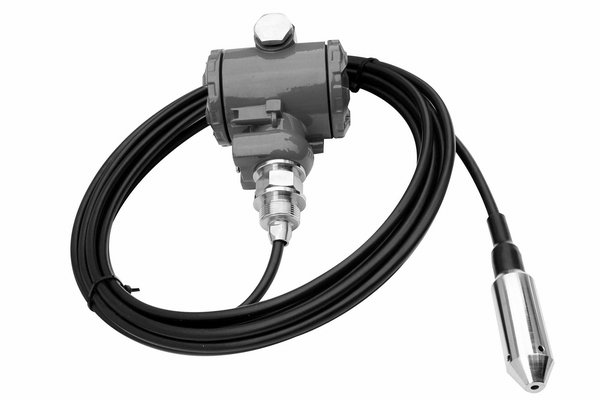

Separable Liquid Level Transmitter - CS-PT400M
Accuracy: ±0.1, ±0.25, ±0.5% F.S; OEM available; split structure, sensor diameter only 24mm, diffused silicon oil-filled core, multiple pressure ranges and signal outputs, non-polar two-wire current output, zero and full-scale adjustment, intrinsic safety, explosion-proof, CE certified.
Applications: hydrological monitoring, constant pressure water supply, variable frequency water supply, tail dam water level, storage tank liquid level height, water-saving irrigation, circulating fluid consumption monitoring, small-diameter pipe liquid level.
Product Introduction
I.Separable Liquid Level TransmitterCS-PT400M Product Description:
The CS-PT400M series liquid level transmitter is a highly reliable, highly stable, high-precision, compact, and split-type liquid level transmitter. It is widely used for detecting liquid level height in small-diameter pipes and storage tanks, such as water, oil, and mildly corrosive liquids.
The product adopts a 1Cr18Ni9Ti stainless steel structure, with an oil-filled pressure core from a foreign brand, and a dedicated amplification and V/I transmitter conversion circuit, allowing convenient zero and full-scale calibration, and external program-controlled adjustment of zero and span.
It can be configured with wear-resistant, oil-resistant, acid-alkali-resistant, high-strength special breathable cables according to different usage sites.
Passed intrinsic safety certification, explosion-proof certification, and CE certification.
Two-wire loop current output leads are non-polar; three-wire voltage output type is AC/DC dual-use.
II. Separable Liquid Level Transmitter CS-PT400M Product Features:
Accuracy: ±0.1, ±0.25, ±0.5% F.S; OEM available; split structure, sensor diameter only 24mm, diffused silicon oil-filled core, multiple pressure ranges and signal outputs, non-polar two-wire current output, zero and full-scale adjustment, intrinsic safety, explosion-proof, CE certified.
III. Separable Liquid Level Transmitter CS-PT400MApplication Fields
Applications: hydrological monitoring, constant pressure water supply, variable frequency water supply, tail dam water level, storage tank liquid level height, water-saving irrigation, circulating fluid consumption monitoring, small-diameter pipe liquid level.
IV. Separable Liquid Level Transmitter CS-PT400M Technical Parameters:
| General |
Value |
Remarks |
||
| Pressure Range |
All pressure ranges between 0~1……200mH2O |
1mH2O≈9.81kPa |
||
| Overload Pressure |
1.5 times rated pressure |
|
||
| Burst Pressure |
3 times rated pressure |
|
||
| Accuracy |
±0.1%F.S，±0.25%F.S，±0.5%F.S (For higher accuracy, please refer to MARS series) |
|
||
| Stability |
Typical 0.1% F.S, max: 0.2% F.S |
|
||
| Operating Temperature |
-40℃~85℃ (customizable -40℃~125℃) |
|
||
| Compensated Temperature |
-10℃~70℃ (customizable full temperature range compensation products) |
|
||
| Media Compatibility |
All corrosive media compatible with 1Cr18Ni9Ti and 316L |
|
||
| Electrical Performance |
Two-wire |
Three-wire |
|
|
| Output Signal |
4~20mA |
0/1~5Vdc |
0~10Vdc |
|
| Power Supply |
10~30Vdc |
6~24Vdc/ac |
11~30Vdc/ac |
Vdc/ac means AC/DC dual-use |
| Load Resistance |
(U-10)/0.02(Ω) |
＞100kΩ |
|
|
| Insulation |
＞100M Ω@50V |
|
||
| Electrical Strength |
500V@60 second |
|
||
| Vibration/Shock |
10g/5~2000Hz, axes X/Y/Z20g sine 11ms |
|
||
| Electrical Connection |
Waterproof cable gland + two-stage rectangular ring + sealing ring + sealant + potting, five-level sealing, IP68 protection |
|
||
| Pressure Connection |
Submersible type, transmitter box wellhead connection size M27×1.5 |
|
||
| Response Time |
10ms |
|
||
| Pressure Type |
Gauge pressure G, |
|
||
| Certifications |
Intrinsic safety explosion-proof type, isolated explosion-proof type, EU electrical safety standard CE |
|
||
| Electromagnetic Compatibility |
Electromagnetic emission: EN50081-1/-2; Electromagnetic immunity: EN50082-2 |
|
||
