Product Introduction

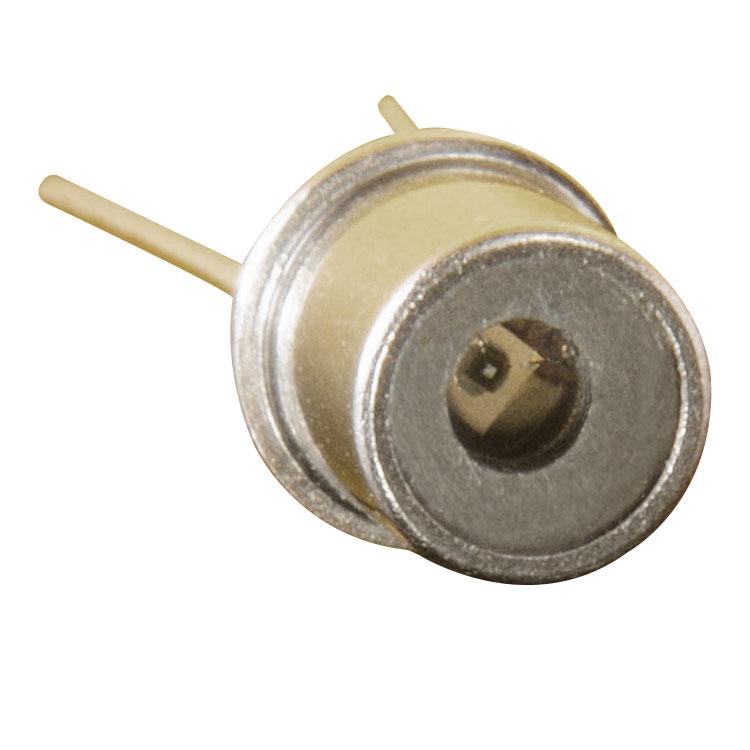

I.UV PhotodiodeSG01S-B18 Features:
1. Made of silicon carbide (SiC) material
2. Only for UVB band
3. Photosensitive area: 0.2mm2
4. Generates approximately 2500nA current under 10mW/cm2 peak irradiance
5. High chip stability (certified by German PTB)
II. UV Photodiode SG01S-B18 About Silicon Carbide (SiC) Material:
SiC has extremely special advantages: it can withstand high-intensity radiation, is almost insensitive to visible light, has low dark current, and fast response speed. These characteristics make SiC an excellent material for suppressing visible light and manufacturing semiconductor UV detectors. SiC detectors can operate at temperatures up to 170°C for long periods, have a low temperature coefficient (<0.1%/K), and low noise, enabling effective monitoring of very low radiation intensities (with appropriate amplifiers).
III. UV Photodiode SG01S-B18 Technical Parameters:
| Model |
SG01S-B18 |
| Spectral Characteristics |
|
| Sensitivity |
0.125A/W |
| Typical Wavelength |
280nm |
| Wavelength Range (S=0.1*Smax) |
231-309nm |
| Visible Light Rejection Ratio (Smax/S>405nm) |
>1010 |
| General Characteristics (25°C) |
|
| Photosensitive Area |
0.06mm2 |
| Dark Current (1V reverse bias) |
0.2fA |
| Capacitance |
15pF |
| Short Circuit Current (10mW/cm2 peak irradiance) |
Approximately 750nA |
| Temperature Coefficient |
<0.1%/K |
| Ratings |
|
| Operating Temperature |
-55～+170℃ |
| Storage Temperature |
-55～+170℃ |
| Soldering Temperature (3s) |
260℃ |
| Reverse Voltage VRmax |
20V |
| Physical Characteristics |
Sealed in TO18 metal package, pin 1 insulated, pin 1 grounded |
IV. UV Photodiode SG01S-B18 Application Fields:
Mainly used for flame control (industrial boilers), water treatment (UV intensity insurance), UV astronomy (array detection), projectile tracking (UV cameras), ozone and pollutant monitoring, flame sensing (fire alarm safety devices, oil droplet monitoring), testing UV intensity in sunlight (gifts, cosmetic tools), UV intensity testing of UV lamps (medical devices or disinfection efficiency testing of household disinfection cabinets), etc.
