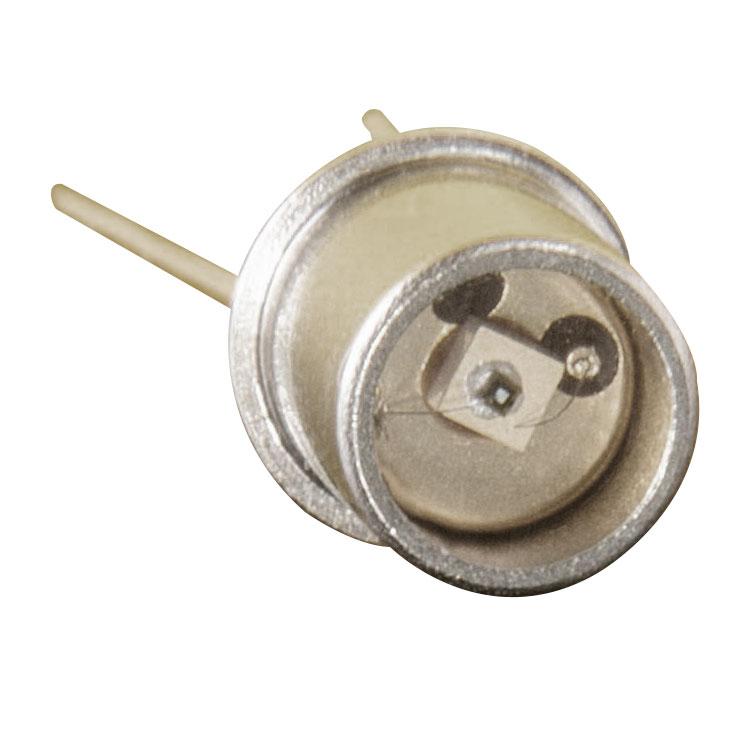

German SGLUX UV Photodiode - SG01S Series

Features of German SGLUX UV Photodiode SG01S Series:

1. Made of silicon carbide (SiC) material

2. Wide band (UVA+UVB+UVC)

3. Effective detection area 0.06mm2

4. 10mW/cm2 peak irradiance generates approximately 780nA current

5. High chip stability (certified by German PTB)

About Silicon Carbide Material (SiC)）：

SiC can withstand extreme radiation hardness, visible blindness, low dark current, high-speed response, and low noise properties; these features make SiC an excellent material for visible-blind UV detectors. SiC detectors canlong-termoperate at temperatures up to 170°C, and the temperature coefficient of the signal (responsivity) is also very low, <0.1%/K. Due to low noise (dark current at fA level), very low UV radiation intensities can be reliably measured (with appropriate amplifiers).

SiC photodiodes can be used as unfiltered broadband detection devices or with optical filters, providing response to UVA, UVB, and UVC bands.

Technical Parameters of German SGLUX UV Photodiode SG01S Series:

Model	SG01S-18	SG01S-18S	SG01S-18ISO90	SG01S-5
Responsivity	0.13A/W	0.13A/W	0.13A/W	0.13A/W
Typical Wavelength	280nm	280nm	280nm	280nm
Wavelength Range (S=0.1*Smax)	221-358nm	221-358nm	221-358nm	221-358nm
Visible Blindness (Smax/S>405nm)	>1010	>1010	>1010	>1010
Effective Detection Area	0.06mm2	0.06mm2	0.06mm2	0.06mm2
Dark Current (1V Reverse Bias)	0.2fA	0.2fA	0.2fA	0.2fA
Capacitance	15pF	15pF	15pF	15pF
Short Circuit Current (10mW/cm2 peak irradiance)	Approximately 780nA	Approximately 780nA	Approximately 780nA	Approximately 780nA
Temperature Coefficient	<0.1%/K	<0.1%/K	<0.1%/K	<0.1%/K
Operating Temperature	-55～+170℃	-55～+170℃	-55～+170℃	-55～+170℃
Storage Temperature	-55～+170℃	-55～+170℃	-55～+170℃	-55～+170℃
Soldering Temperature (3S)	260℃	260℃	260℃	260℃
Reverse Voltage VRmax	20V	20V	20V	20V
Physical Characteristics	TO18 metal housing sealed, 1 pin insulated, 1 pin grounded	TO18 metal housing sealed with small cap, 1 pin insulated, 1 pin grounded	TO18 metal housing sealed, 2 pins insulated, 1 pin grounded	TO5 metal housing sealed with small cap, 1 pin insulated, 1 pin grounded



Application Fields of German SGLUX UV Photodiode SG01S Series:

Mainly used for flame control (industrial boilers), water treatment (UV intensity insurance), UV astronomy (array detection), projectile tracking (UV cameras), ozone and pollutant monitoring, flame sensing (fire alarm safety devices, oil droplet monitoring), testing UV intensity in sunlight (gifts, cosmetics), UV lamp intensity testing (medical devices or disinfection efficiency inspection of household disinfection cabinets), etc.
