Product Introduction

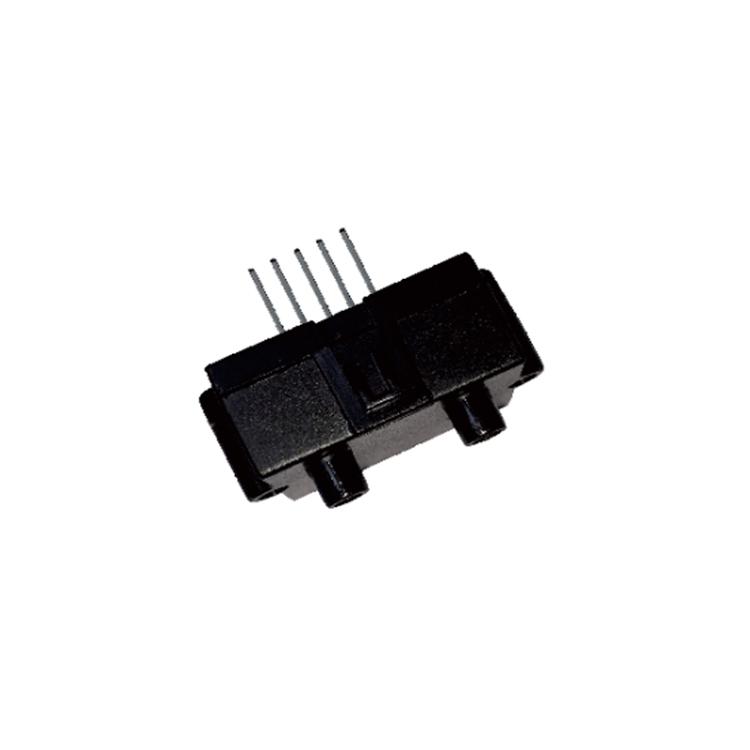

I.US SiargoDigital Micro Differential Pressure Sensor FSP1000 Series Features:
High sensor sensitivity, extremely low starting flow
Fast response
Low pressure loss
Easy installation
II.US SiargoDigital Micro Differential Pressure Sensor FSP1000 Series Model Selection:
FSP1000: Output (E-I2C; V-Analog Voltage; E and EV optional)
Differential pressure range (250 or 500 optional)
The unit of differential pressure range is Pa, for example, 250 represents a differential pressure of ±250Pa.
The standard output of the sensor is I2C, with analog voltage output as an option.
III.US SiargoDigital Micro Differential Pressure Sensor FSP1000 Series Technical Parameters:
| Differential Pressure Range |
±250，±500 |
Pa |
| |
±1. 0，±2. 0 |
i nch H O |
| Operating Power Supply |
3. 0~3. 6 |
Vdc |
| Output Method |
Linearity, I2C / Analog Voltage (optional) |
|
| Analog Output Range |
0. 4~2. 4 |
Vdc |
| Digital Output Resolution |
12 |
bi t |
| I2C Clock Frequency |
100 |
kH z |
| I2C Address |
Read 0xa1, Write 0xa0 |
|
| Electrical Interface |
Five-pin, 2.54mm |
|
| Response Time |
5 |
ms |
| Flow Resistance |
<95m l / m i n @ 500Pa |
|
| Accuracy |
±(2. 0+0. 2FS) |
% |
| Repeatability |
±0. 5 |
% |
| Temperature Drift |
<0. 3% / 10℃ |
|
| Operating Temperature |
-5~+65 |
℃ |
| Zero Drift |
±0. 5 |
Pa |
| Zero Stability |
±0. 1 |
Pa/year |
| Zero Repeatability |
±0. 1 |
Pa |
| Altitude Effect |
None (fully compensated) |
|
| Storage Temperature |
-40~+85 |
℃ |
| Operating Pressure |
0. 2 |
M Pa |
| Operating Humidity |
0~100 (no freezing, no condensation) |
% RH |
| Warm-up Time |
50 |
m sec |
| Vibration Standard |
20g; M I L-STD -883E, M et hod 2002. 4. |
|
| Compliance |
RoHS and REACH |
|
