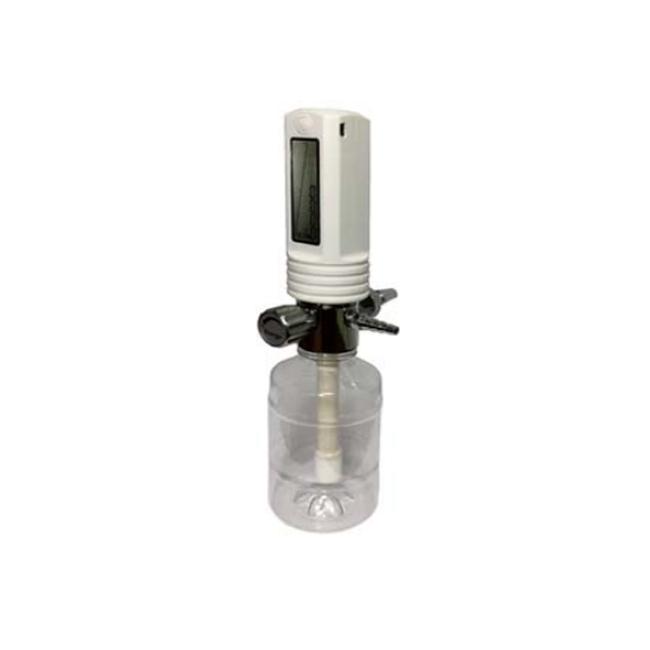

US Siargo Digital Oxygen Inhaler Oxygen Flowmeter - MF5806 Series
Range: 0 ~ 10 SLPM
Accuracy: ±(1.5+0.5 FS)%
Response Time: ≤2 sec
Operating Temperature: -10 ~ +55 ℃
Power Supply: AA alkaline battery (LR6) or external adapter 5~15Vdc (optional)
Power Consumption: 5mW
Display: LCD
Product Introduction
I.US Siargo MF5806 SeriesDigitalOxygen InhalerProduct Overview:
The MF5806 series digital oxygen inhaler is made with our self-developed MEMS flow sensing chip, suitable for medical central oxygen supply systems, emergency oxygen supply, and oxygen inhalation for hypoxia. The LCD digital display provides instantaneous flow, cumulative flow, and oxygen use time, intuitive and convenient. It helps doctors more accurately determine the patient's oxygen intake. Automatic historical data storage and oxygen consumption statistics. High accuracy and wide range. Provides digital signal output, equipped with RS485 communication module, enabling networked system management and connection to hospital network systems for automatic oxygen billing. Key functions allow users to adjust or query oxygen inhaler parameters on-site. Password management ensures data security. Can be powered by battery or external power. Also has an oxygen overdose alarm function.
II. US SiargoMF5806 SeriesDigital Oxygen Inhaler Product Features:
1. Precision medical oxygen flow measurement and control, can measure instantaneous and cumulative oxygen consumption
2. User-friendly display interface and operation interface
3. Fully digital design ensures high performance
4. Alarm function with total setting over-limit alarm
5. Digital, equipped with RS485 communication module for easy networking
6. Automatic historical data storage and oxygen consumption statistics
7. Password management for data security
8. Can measure and display ambient temperature
9. Low power consumption, long battery life
III. US SiargoMF5806 SeriesDigital Oxygen Inhaler Applications:
Medical central oxygen supply systems
Emergency oxygen supply and oxygen inhalation for hypoxia

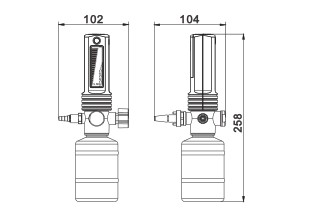

IV. US SiargoMF5806 SeriesDigital Oxygen Inhaler Dimensions:
