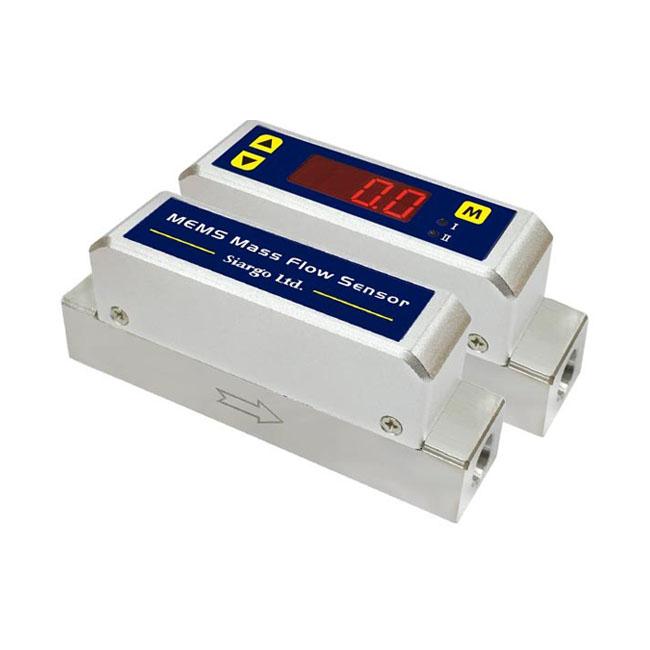

US Siargo Gas Mass Flow Meter MEMS Flow Sensing Chip LED Display - MF4700 Series
The sensing chip uses thermal mass flow measurement, requiring no temperature or pressure compensation, ensuring high-precision measurement of the flow meter
Multi-sensor integration is achieved on a single chip, enabling a turndown ratio of 50:1 or even higher
Flexible output methods: data can be actively uploaded via communication interface or queried by the host computer, and linear analog voltage can also be output through the analog interface
Equipped with RS485 communication module for centralized control and remote transmission
Product Introduction
US Siargo Gas Mass Flow Meter MEMS Flow Sensing Chip LED DisplayMF4700 SeriesProduct Overview:
The MF/FS4700 series gas mass flow meters are manufactured using our self-developed micro-electromechanical system (MEMS) flow sensing chips, suitable for various clean and dry gases.
The MF/FS4700 features a clear and intuitive LED display showing real-time flow and total accumulated volume. It directly outputs mass flow without temperature or pressure compensation. The MF/FS4700 has button functions allowing users to adjust or query flow meter parameters on-site, and has an RS485 network communication interface for remote control and system integration. Mechanical dimensions and flow ranges can be customized according to customer requirements.
US Siargo Gas Mass Flow Meter MEMS Flow Sensing Chip LED DisplayMF4700 SeriesProduct Features:
The sensing chip uses thermal mass flow measurement, requiring no temperature or pressure compensation, ensuring high-precision measurement of the flow meterMulti-sensor integration is achieved on a single chip, enabling a turndown ratio of 50:1 or even higher
Flexible output methods: data can be actively uploaded via communication interface or queried by the host computer, and linear analog voltage can also be output through the analog interface
LED displays instantaneous flow and total accumulated volume, allowing on-site configuration of flow meter parameters via buttons
Records the maximum and minimum instantaneous flow values since power-on, with over-range indication function
Equipped with RS485 communication module for centralized control and remote transmission
Same gas connection interface as traditional rotameters

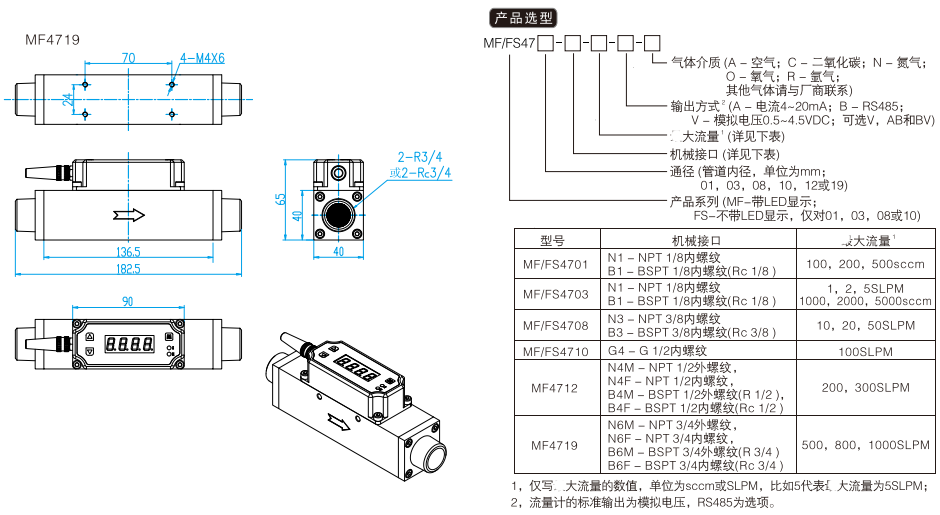

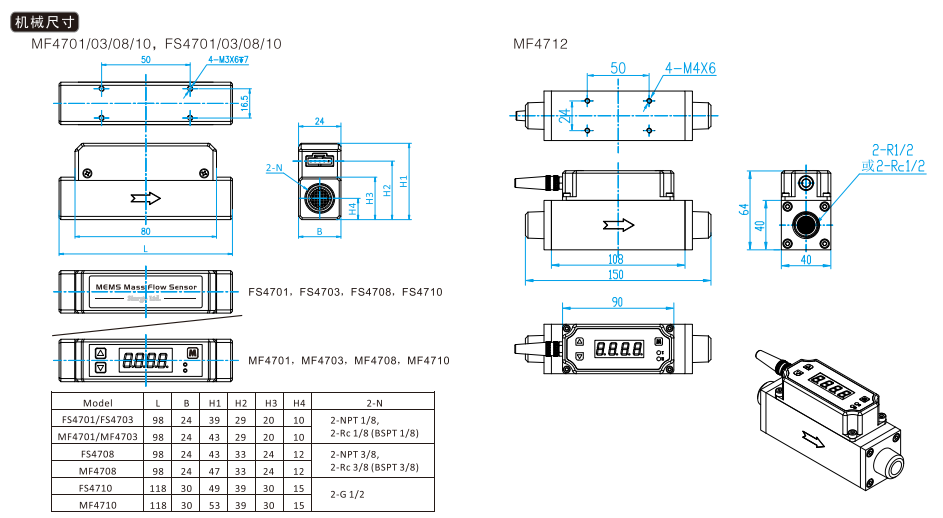

Mechanical dimensions and flow ranges can be customized according to customer requirements

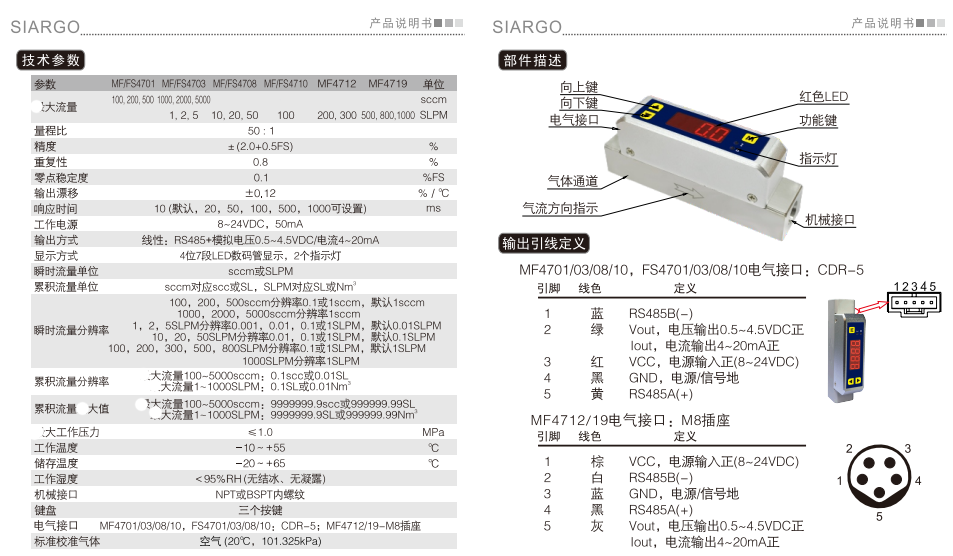

US Siargo Gas Mass Flow Meter MEMS Flow Sensing Chip LED DisplayMF4700 Series Parameters:
