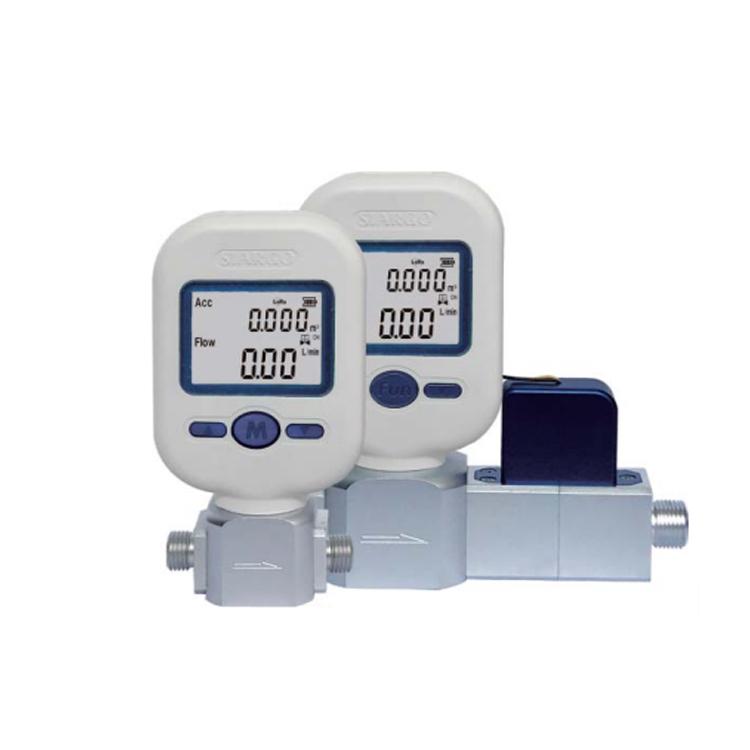

US Siargo MF5700 Series Portable Gas Mass Flow Meter MF5706/MF5712

US Siargo MF5700 Series Portable Gas Mass Flow Meter - MF5706/MF5712

The sensing chip uses thermal mass flow measurement, requiring no temperature or pressure compensation, ensuring high-precision measurement of the flow meter
High sensitivity, capable of measuring extremely low starting flow rates
Multi-sensor integration on a single chip achieves a turndown ratio of 80:1 or even higher
Full-range high stability, high accuracy, and excellent repeatability

Product Model: MF5706/MF5712

Inquire

shareShare

Product Introduction

I. US Siargo MF5700 Series PortableGas Mass Flow MeterProduct Overview:

The MF5700 series gas mass flow meter is based on the MEMS flow sensing chip independently developed by Siargo Micro Electro Mechanical Systems Co., Ltd. Its principle utilizes the interdependent relationship between heat transfer and mass transfer of flowing gas, generating temperature changes upstream and downstream to obtain the gas mass flow rate.

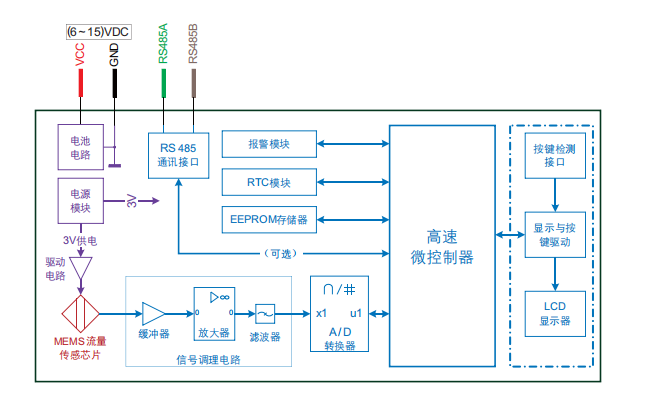

The flow meter simultaneously generates the heat source and measures temperature. When the chip is in operation, a stable temperature field distribution forms around the sensor. Once a certain mass of gas flows through the sensor, the gas flow disrupts the temperature field distribution, creating a specific temperature field distribution that depends on the mass and velocity of the gas. The sensor on the MEMS flow meter chip measures this change and converts it into an electrical signal, which is amplified, conditioned, and linearized by a dedicated transmitter circuit. Since different masses of gas cause different disturbances to the stable temperature field around the sensor, the mass flow rate or total flow of the gas can be measured. The figure below shows the principle block diagram of this series of flow meters.

II. US Siargo MF5700 Series Portable Gas Mass Flow Meter Product Features:

The sensing chip uses thermal mass flow measurement, requiring no temperature or pressure compensation, ensuring high-precision measurement of the flow meter

High sensitivity, capable of measuring extremely low starting flow rates

Multi-sensor integration on a single chip achieves a turndown ratio of 80:1 or even higher

Full-range high stability, high accuracy, and excellent repeatability

Supports measurement of multiple gases, allowing customers to calibrate certain special gases on-site

Fast response speed

Flexible output methods, providing LCD on-site display and RS485 communication interface for host computer query of output data

Configurable parameters via buttons

Over-range alarm indication function

Portable design, switchable between battery power and external power supply

G thread or NPT thread connection, easy to install and use, other interfaces can be customized according to customer requirements

III. US Siargo MF5700 Series Portable Gas Mass Flow Meter Applications:

1. Electromechanical industry 2. Food industry

3. Tobacco industry 4. Analytical instrument industry

5. Chemical industry 6. Beverage industry

7. Glass industry 8. Research institutions and universities

9. Pharmaceutical industry 10. Agriculture, forestry, and fishery

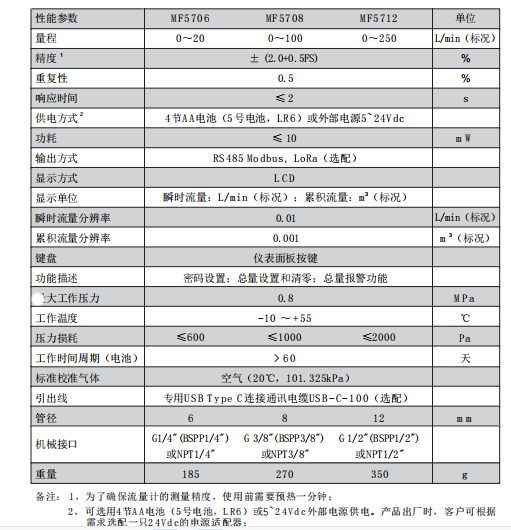

IV: US Siargo MF5700 Series Portable Gas Mass Flow Meter Parameters:

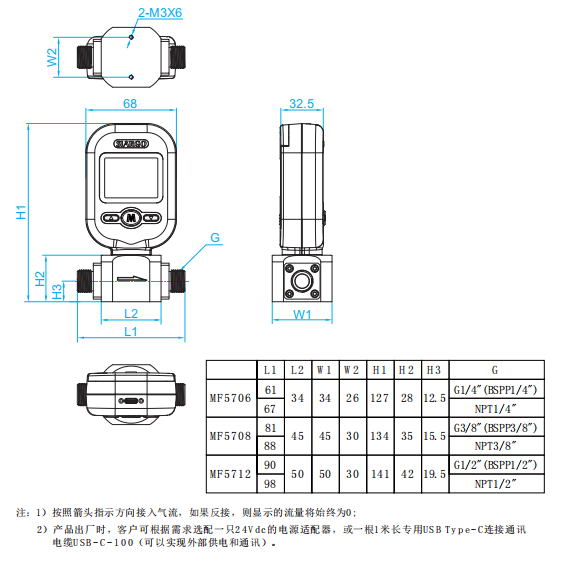

V. US Siargo MF5700 Series Portable Gas Mass Flow Meter Product Structure and Mechanical Dimensions:

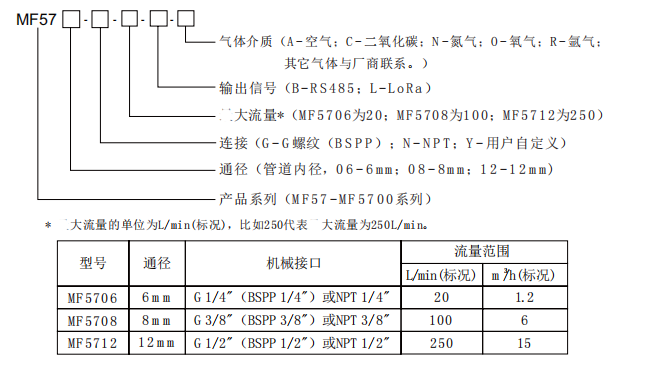

VI. US Siargo MF5700 Series Portable Gas Mass Flow Meter Selection:
