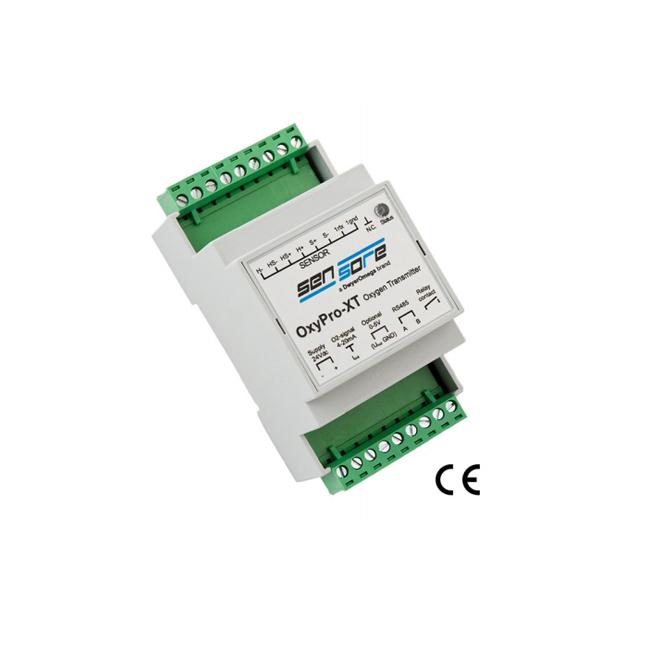

SMART Calibration-Free Plug-and-Play Oxygen Transmitter/Monitor - OxyPro-XT
No calibration required
Measurement range from 10 ppm to 96% O₂, defined by the selected Smart sensor
Pre-calibrated Smart sensors
Analog 4...20 mA, 0...5 V (optional), and RS485 ModbusRTU outputs
User-programmable O₂ alarm/relay
Product Introduction
SMART Calibration-Free Plug-and-Play Oxygen Transmitter/MonitorOxyPro-XT Description:
The OxyPro-XT uses smart sensors based on oxygen diffusion-limited zirconia technology, providing a long-life, reliable solution. Each smart sensor is individually calibrated using an oxygen reference gas, and the calibration data is stored inside the sensor. When the sensor is connected, its calibration and operating parameters are automatically uploaded to the transmitter, enabling plug-and-play operation.
This transmitter is compatible with a variety of sensors and thread/flange types in the SENSORE product line. The OxyPro-XT is a single-channel/single-range solution. For combining two different measurement ranges, please refer to the dual-channel solution OxyPro-XT2.
SMART Calibration-Free Plug-and-Play Oxygen Transmitter/MonitorOxyPro-XT Features:
User-programmable O₂ alarm/relay

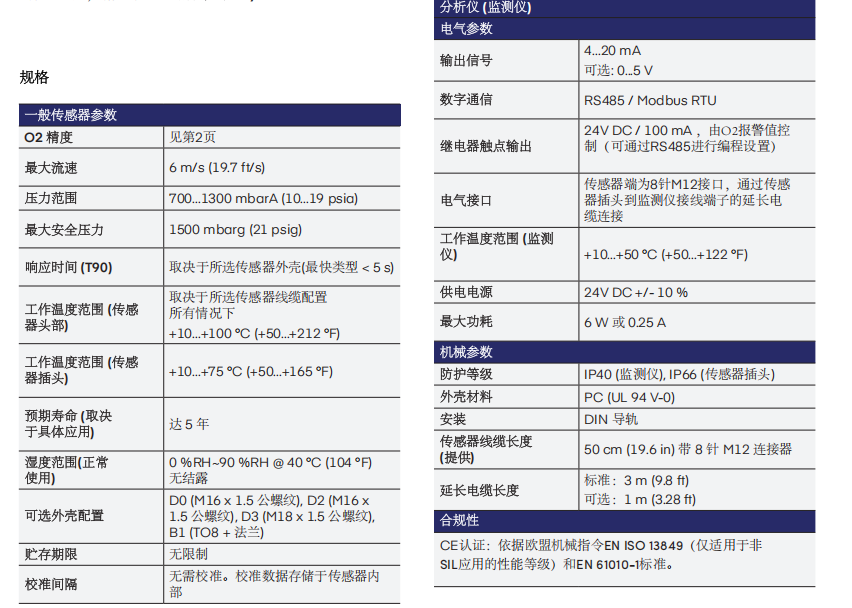

SMART Calibration-Free Plug-and-Play Oxygen Transmitter/MonitorOxyPro-XT Parameters:
