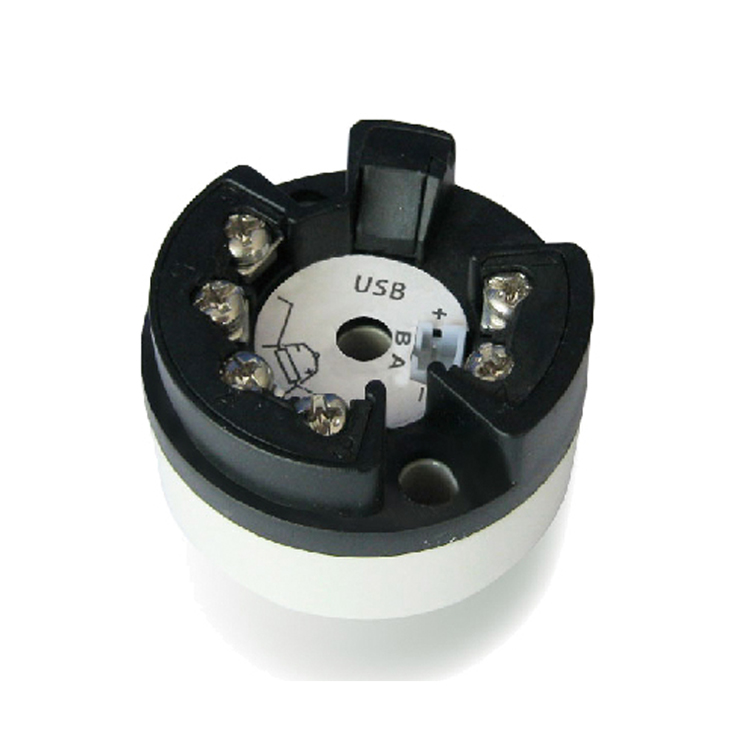

Smart Temperature Transmitter with RS485 Communication - JTR-1003
Input type: 4-wire PT100 or Tungsten-Rhenium/B/R/S/N/K/J/T/E thermocouple
Output: RS485
Data update rate: 1.5 seconds
Thermocouple cold junction compensation accuracy (AT 25℃): (max) ±0.05℃
Operating environment: -35~85℃, 0~95% relative humidity
Electrical isolation: Input-output-power isolation voltage 1000VDC
Power supply: 12 ~ 36VDC
Product Introduction
JTR-1003 Smart Temperature Transmitter with RS485 Communication
Input type: 4-wire PT100 or Tungsten-Rhenium/B/R/S/N/K/J/T/E thermocouple
Output: RS485
Data update rate: 1.5 seconds
Thermocouple cold junction compensation accuracy (AT 25℃): (max) ±0.05℃
Operating environment: -35~85℃, 0~95% relative humidity
Special features:
Can be matched with sensors for high-precision measurement.
For thermocouple input, an external temperature compensation element can be connected for real-time compensation.
Electrical isolation: Input-output-power isolation voltage 1000VDC
Power supply: 12 ~ 36VDC

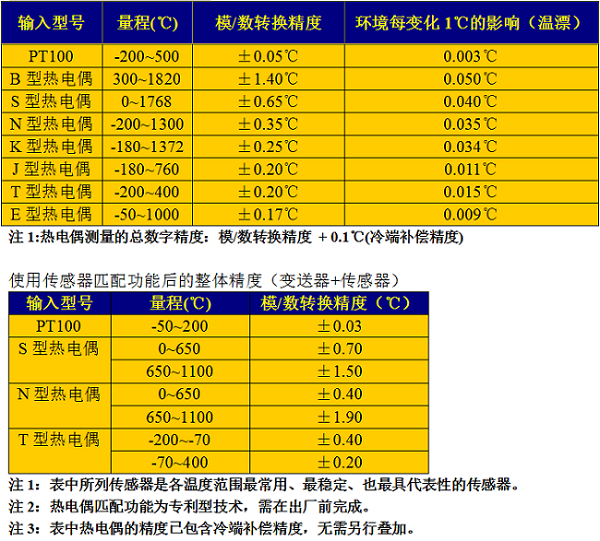

Accuracy (AT 25℃ max):
