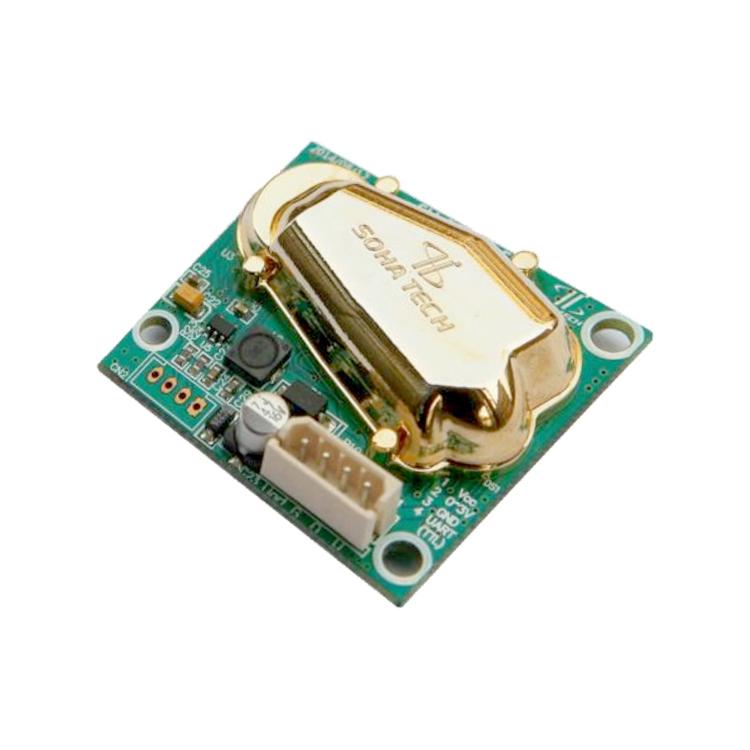

Korea SOHA Anti-High Humidity Infrared CO2 Sensor Module - SH-DS
Detection Principle: Dual-beam Non-Dispersive Infrared (NDIR)
Detection Range: 0 ~ 3000ppm / 5000ppm
Accuracy: ±60 ppm ± 3% ppm @ 0 ~ 50℃
Data Update: Every 2 seconds
Operating Environment: -10 ~ 50℃, 0 ~ 99.5% RH (non-condensing)
Power Supply: DC 5V ~ 9V input, recommended 5~7V
Power Consumption: Average 35mA, Peak 80mA
Product Introduction
Applications of Korea SOHA Anti-High Humidity Infrared CO2 Sensor Module SH-DS:
Agricultural IoT
Greenhouses
Agricultural Greenhouses
Ventilation Control
Mushroom House Environment
Technical Parameters of Korea SOHA Anti-High Humidity Infrared CO2 Sensor Module SH-DS:
| Detection Principle |
Dual-beam Non-Dispersive Infrared (NDIR) |
| Detection Range |
0 ~ 3000ppm / 5000ppm |
| Accuracy |
±60 ppm ± 3 % ppm @ 0 ~ 50℃ |
| Data Update |
Every 2 seconds |
| Warm-up Time @25℃ |
< 90sec |
| Operating Environment |
-10 ~ 50℃, 0 ~ 99.5% RH (non-condensing) |
| Output |
Analog Output: 0~3VDC (0~3000, 5000 ppm) |
| Digital Output: 9600bps TTL Level 3.3V |
|
| Power Supplies |
DC 5V ~ 9V input, recommended 5~7V |
| Power Consumption |
Average 35mA, Peak 80mA |
| Interface |
4PIN Header[CN1] |
| Molex 5267 included With 2.54mm spacing. |
|
| Refer to Dimensions |
|
| Dimensions |
(W)40mm x (H)36mm x (D)11.9 mm, Weight: 12g |
