Product Introduction

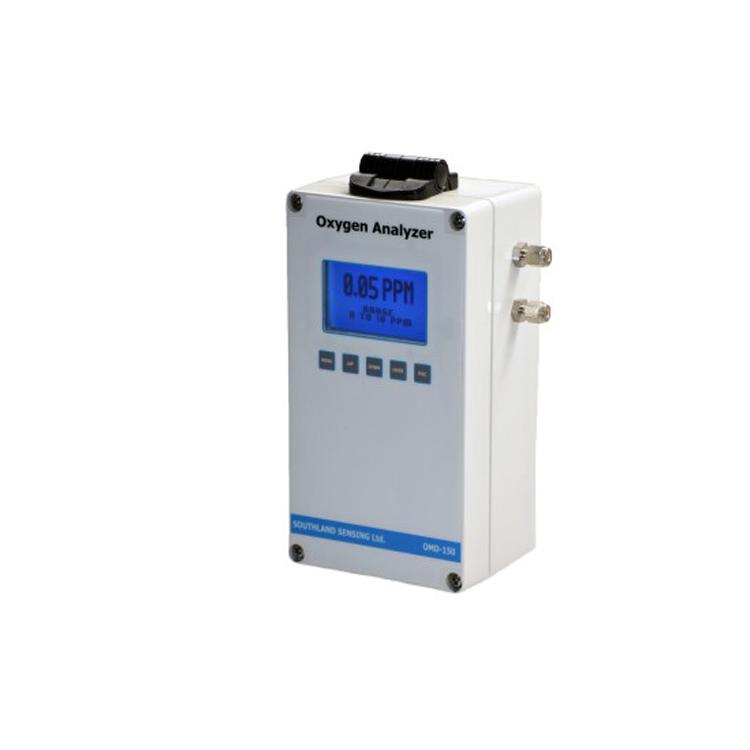

I. US SouthlandOxygenAnalyzerOMD-150 Description:
US Southland Sensing Co., Ltd. has released a new CE-certified, microprocessor-based oxygen analyzer OMD-150, which can be configured for trace oxygen or percent oxygen detection according to specific application requirements. It is fully configurable to meet most industrial applications for trace and percent oxygen analysis. Various optional electrical interfaces, different sensor ranges, and gas connection methods make this analyzer an economical and low-maintenance solution.
II. US Southland OxygenOxygen AnalyzerOMD-150 Product Features:
Fuel cell oxygen sensor
The circuit design adopts intelligent microcontroller technology
High accuracy and good stability
Long service life
Low power consumption
Compact size and simple structure
Easy to use and maintain
III. US Southland OxygenOxygen AnalyzerOMD-150 Application Fields:
Glove boxes
Air separation
Chemical and smelting industries
Nitrogen generation, hydrogen generation, natural gas pipelines
Oxygen concentration detection in semiconductor protective gases
Oxygen concentration detection in high-temperature furnaces, etc.
IV. US Southland OxygenOxygen AnalyzerOMD-150 Parameters:
| Measurement Range |
0 - 10ppm, 0 - 100ppm, 0 - 1000ppm, 0 - 1% |
| Measurement Accuracy |
< 1%FS |
| Certification |
CE |
| Dimensions |
241*165*96 mm |
| Operating Temperature |
-10 to 50℃ |
| Temperature Compensation |
Integration |
| Sensor Type |
Micro fuel cell |
| Warranty |
12 months |
| Test Medium |
Inert gases such as N2, hydrocarbons, argon, or reducing gases such as H2 (If the test medium contains acidic gases such as H2S, SO2, CO2, please inform us in advance; the standard sensor of the analyzer is not resistant to acidic gases) |
| Supply Voltage |
12-24VDC |
| Current |
25mA |
| Analog Output |
4～20mA 、 0-10V |
| Sample Gas Flow |
236-2360ml/min |
