US Southland Oxygen Sensor O2 Sensor - OSS-2
Measures oxygen from 0 to 100% range
Electrochemical fuel cell sensor technology
Self-contained, no electrolyte addition required
Excellent stability, performance & linearity
Easy replacement in competitive fields
Product Introduction
US Southland Oxygen Sensor O2 Sensor OSS-2 Description:
The OSS-2 oxygen sensor provides high levels of accuracy, reliability, and linearity across the entire range. The oxygen sensor is based on the electrochemical fuel cell principle and is produced internally under strict quality procedures.
With excellent customer service and industry-proven product design, the sensor excels in performance and quality while reducing costs.
The various performance advantages of the sensor can be attributed to subtle modifications in size, connection, and packaging. However, the operating principle and basic components remain unchanged.
In addition to excellent performance and superior quality, Southland Sensing also offers fast delivery times for most oxygen sensors to its customer base.
US Southland Oxygen Sensor O2 Sensor OSS-2 Features:
Measures oxygen from 0 to 100% range
Electrochemical fuel cell sensor technology
Self-contained, no electrolyte addition required
Excellent stability, performance & linearity
Easy replacement in competitive fields
US Southland Oxygen Sensor O2 Sensor OSS-2 Applications:
Monitoring oxygen partial pressure in automotive exhaust, safety, flue gas, and other common oxygen monitoring applications.
US Southland Oxygen Sensor O2 Sensor OSS-2 Specifications:
| Sensor Technology |
Electrochemical |
| Signal Output |
9 - 13 mV |
| Range |
0 - 100% |
| Response Time T90 |
6S |
| Full Scale Accuracy |
±1% of signal |
| Repeatability F.S. |
± 0.5% |
| Operating Temperature |
0~50 º C |
| Storage Temperature |
0~45º C |
| Recommended Flow Rate |
0.4 - 20 |

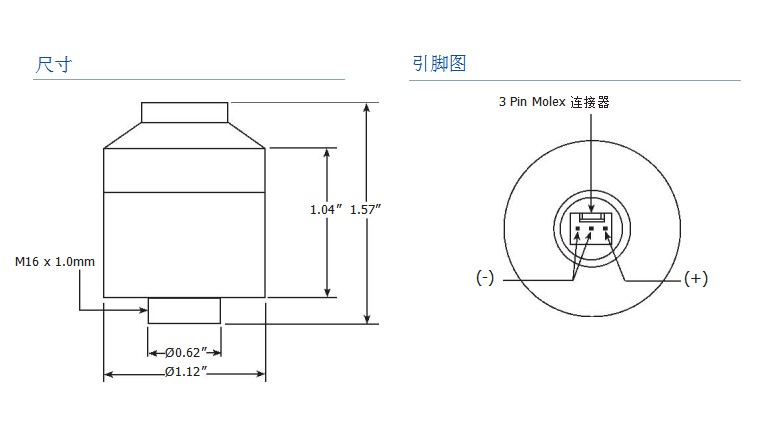

US Southland Oxygen Sensor O2 Sensor OSS-2 Dimensional Drawing:
