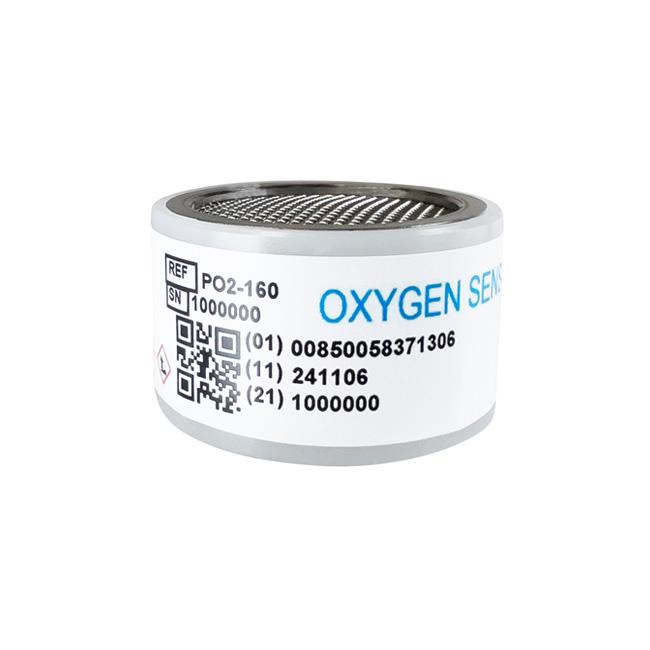

US Southland Percent Oxygen Sensor (Replacement for Analytical Industries: GPR - PO2-160
Sensor Technology: Micro Fuel Cell
Signal Output: 38-74uA
Measurement Range: 0-1%, 5, 10, 25, 100%
Response Time T90: 7 seconds
Full Scale Accuracy: ±1% F.S
Full Scale Repeatability: ±0.5%
Temperature Coefficient: 2.54%/℃
Product Introduction
1. PO2-160 Percent Oxygen Sensor Product Description:
The percent oxygen sensor PO2-160 is a general-purpose oxygen sensor that uses micro fuel cell sensor technology, featuring high accuracy, wide range, and long life.
2. PO2-160 Percent Oxygen Sensor Product Features:
Sensor Technology: Micro Fuel Cell
Signal Output: 38-74uA
Measurement Range: 0-1%, 5, 10, 25, 100%
Response Time T90: 7 seconds
Full Scale Accuracy: ±1% F.S
Full Scale Repeatability: ±0.5%
Temperature Coefficient: 2.54%/℃
Operating Temperature: 0-50℃
Storage Temperature: 0-45℃
Recommended Flow Rate: 0.5-2 SCFH
Humidity: 0-100% RH (non-condensing)
Expected Life: 60 months
Storage: 9 months
Warranty: 12 months
PCB Connection: Center foil negative, outer foil positive
Signal output measured at 25℃, sea level, in air
Full scale accuracy calculated under constant pressure and temperature and appropriate calibration conditions; severe temperature changes may cause max ±10% error
Expected life calculated at O2 concentration of 20.9%, 25℃, sea level
3. PO2-160 Percent Oxygen Sensor Applications:
Widely used for oxygen content testing in air separation units, chemical & petrochemical processes, steelmaking, and many other fields.
