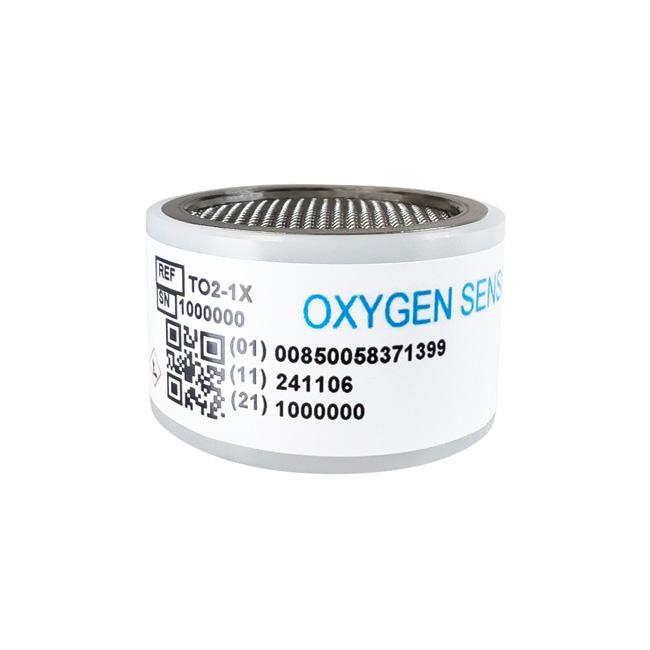

US Southland PPM-level Oxygen Sensor O2 Trace Oxygen Sensor - TO2-1X
Sensor Technology: Micro Fuel Cell
Signal Output: 285-590uA
Measurement Range: 0-10PPM (Min), 0-10000PPM (Max)
Response Time T90: 13 seconds
Full Scale Accuracy: ±1% F.S
Full Scale Repeatability: ±0.5%
Temperature Coefficient: 2.54%/℃
Operating Temperature: 0-50℃
Product Introduction
I.US SouthlandPPM-levelOxygen SensorO2 Trace Oxygen SensorTO2-1X Product Description:
The oxygen sensor TO2-1X is PPM-level, with measurement ranges of 0-10PPM and 0-10000PPM. It uses micro fuel cell sensor technology, featuring high precision and long life.
II.US Southland PPM-levelOxygen Sensor O2 Trace Oxygen SensorApplication Areas:
Widely used in air separation units, chemical & petrochemical processes, steelmaking, and other fields for oxygen content testing.
III.US Southland PPM-levelOxygen Sensor O2 Trace Oxygen SensorParameters:
| Sensor Technology |
Micro Fuel Cell |
| Signal Output |
285-590uA |
| Measurement Range |
0-10PPM(Min)，0-10000PPM(Max) |
| Response Time T90 |
13 seconds |
| Full Scale Accuracy |
±1%F.S |
| Full Scale Repeatability |
±0.5% |
| Temperature Coefficient |
2.54%/℃ |
| Operating Temperature |
0-50℃ |
| Storage Temperature |
0-45℃ |
| Recommended Flow Rate |
0.5-5SCFH |
| Humidity |
0-100%RH (non-condensing) |
| Expected Life |
20-25 months |
| Storage |
6 months |
| Warranty |
12 months |
| PCB Connection |
Center foil negative, outer foil positive |
Full scale accuracy calculated under constant pressure and temperature and appropriate calibration conditions; drastic temperature changes may cause max. ±10% error
Expected life calculated at O2 concentration <1000PPM, 25℃, sea level
