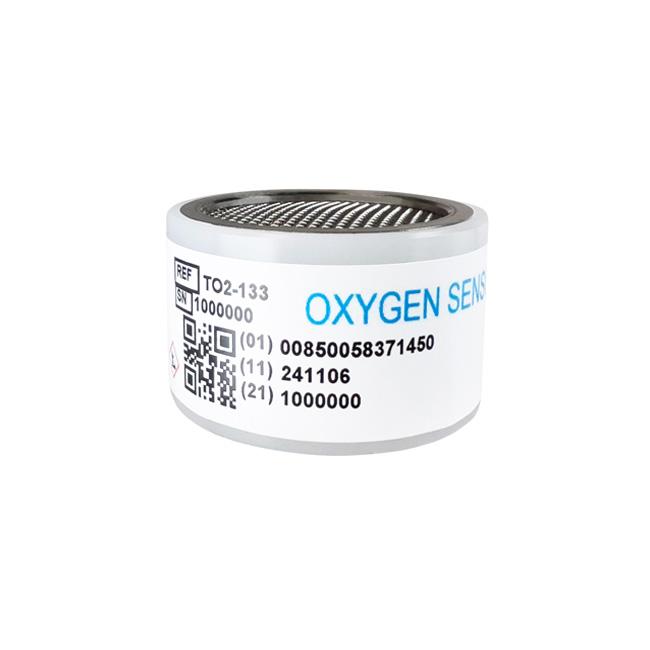

US Southland Oxygen Sensor O2 Trace Oxygen Sensor (Replacement for Analytical Industries: GPR - TO2-133
Sensor Technology: Micro Fuel Cell
Signal Output: 520-1020uA
Measurement Range: 0-10PPM (Min), 0-10000PPM (Max)
Response Time T90: 7 seconds
Full Scale Accuracy: ±1% F.S
Full Scale Repeatability: ±0.5%
Temperature Coefficient: 2.54%/℃
Operating Temperature: 0-50℃
Product Introduction
US Southland Oxygen Sensor O2 Trace Oxygen SensorTO2-133 Product Description:
Oxygen Sensor TO2-133 is PPM level, measuring range 0-10PPM and 0-10000PPM; using micro fuel cell sensor technology, with high precision, fast response, long life and other characteristics.
US Southland Oxygen Sensor O2 Trace Oxygen Sensor TO2-133Product Features:
Sensor Technology: Micro Fuel Cell
Signal Output: 520-1020uA
Measurement Range: 0-10PPM (Min), 0-10000PPM (Max)
Response Time T90: 7 seconds
Full Scale Accuracy: ±1% F.S
Full Scale Repeatability: ±0.5%
Temperature Coefficient: 2.54%/℃
Operating Temperature: 0-50℃
Storage Temperature: 0-45℃
Recommended Flow Rate: 0.5-5 SCFH
Humidity: 0-100%RH (non-condensing)
Expected Life: 20-25 months
Storage: 6 months
Warranty: 12 months
PCB Connection: Center foil negative, outer foil positive
Signal output measured at 25℃, sea level, in air
Full scale accuracy calculated under constant pressure and temperature and appropriate calibration conditions; drastic temperature changes can cause max ±10% error
Expected life calculated at O2 concentration <1000PPM, 25℃, sea level
US Southland Oxygen Sensor O2 Trace Oxygen Sensor TO2-133Applications:
Widely used in air separation units, chemical & petrochemical processes, steelmaking and other fields for oxygen content testing.
