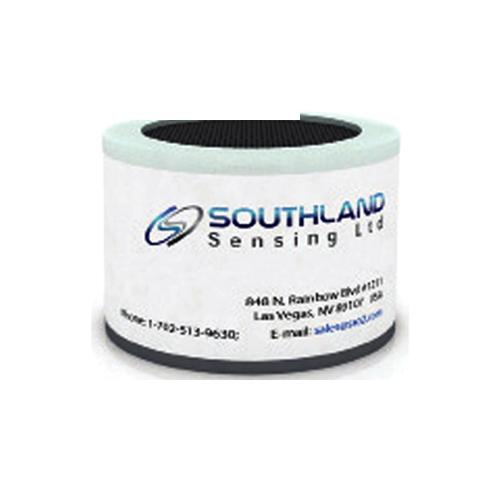

US Southland Trace Oxygen Sensor O2 Sensor Oxygen - TO2-IT
Sensor Technology: Micro Fuel Cell
Signal Output: 285-590uA
Measurement Range: 0-10PPM (Min), 0-10000PPM (Max)
Response Time T90: 13 seconds
Full Scale Accuracy: ±1% F.S
Full Scale Repeatability: ±0.5%
Temperature Coefficient: 2.54%/℃
Operating Temperature: 0-50℃
Product Introduction
1. TO2-IT Trace Oxygen Sensor Product Description:
The oxygen sensor TO2-IT is PPM level, with measurement ranges of 0-10PPM and 0-10000PPM. It uses micro fuel cell sensor technology, featuring high precision and long life.
2. TO2-IT Trace Oxygen Sensor Product Features:
Sensor Technology: Micro Fuel Cell
Signal Output: 285-590uA
Measurement Range: 0-10PPM (Min), 0-10000PPM (Max)
Response Time T90: 13 seconds
Full Scale Accuracy: ±1% F.S
Full Scale Repeatability: ±0.5%
Temperature Coefficient: 2.54%/℃
Operating Temperature: 0-50℃
Storage Temperature: 0-45℃
Recommended Flow Rate: 0.5-5 SCFH
Humidity: 0-100%RH (non-condensing)
Expected Life: 17-25 months
Storage: 6 months
Warranty: 12 months
PCB Connection: Center foil negative, outer foil positive
Signal output measured at 25℃, sea level, in air
Full scale accuracy calculated under constant pressure and temperature and appropriate calibration conditions; severe temperature changes can cause max ±10% error
Expected life calculated at O2 concentration <1000PPM, 25℃, sea level
3. TO2-IT Trace Oxygen Sensor Application Areas:
Widely used in air separation units, chemical & petrochemical processes, steelmaking, and other fields for oxygen content testing.
