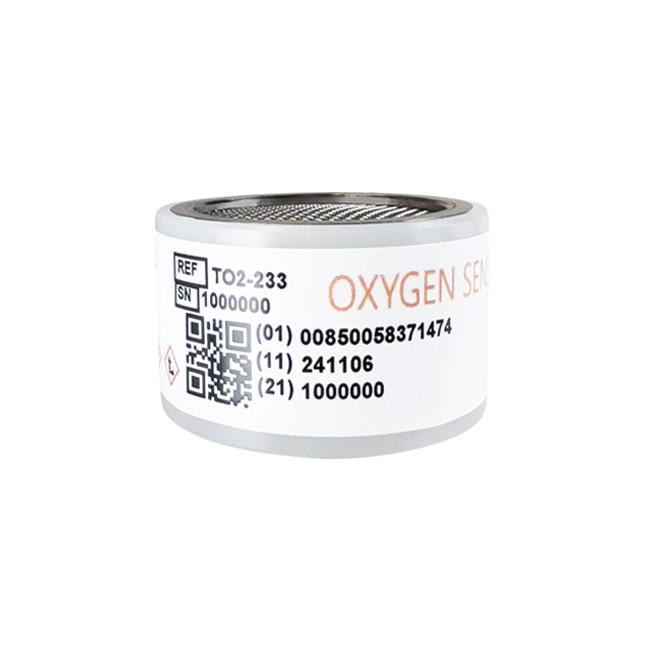

US Southland Oxygen Sensor Trace Oxygen Sensor (Replacement for Analytical Industries: XLT - TO2-233

US Southland Oxygen Sensor Trace Oxygen SensorTO2-233 Product Description:
Oxygen sensor TO2-233 is PPM level, measuring range 0-10PPM and 0-10000PPM; mainly used for measurement under CO2 content greater than 0.1%; adopts micro fuel cell sensor technology, with high precision, fast response, long life and other characteristics.

US Southland Oxygen Sensor Trace Oxygen Sensor TO2-233Product Features:
Sensor Technology: Micro Fuel Cell
Signal Output: 530-1050uA
Measurement Range: 0-10PPM (Min), 0-10000PPM (Max)
Response Time T90: 7 seconds
Full Scale Accuracy: ±1% F.S
Full Scale Repeatability: ±0.5%
Temperature Coefficient: 2.54%/℃
Operating Temperature: 0-50℃
Storage Temperature: 0-45℃
Recommended Flow Rate: 0.5-5 SCFH
Humidity: 0-100% RH (non-condensing)
Expected Life: 17-25 months
Storage: 6 months
Warranty: 12 months
PCB Connection: Center foil negative, outer foil positive
Signal output measured at 25℃, sea level, in air
Full scale accuracy calculated under constant pressure and temperature and appropriate calibration conditions; drastic temperature changes may cause max ±10% error
Expected life calculated at O2 concentration <1000PPM, 25℃, sea level

US Southland Oxygen Sensor Trace Oxygen Sensor TO2-233Application Areas:
Widely used in air separation units, chemical & petrochemical processes, steelmaking and other fields for oxygen content testing.
