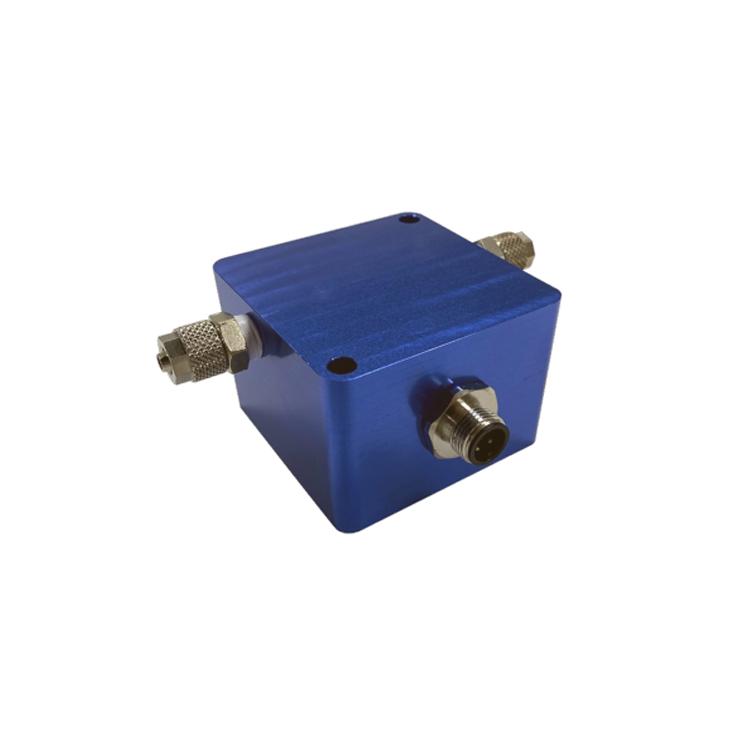

UK SST Fluorescent Trace Oxygen Transmitter Exposable to Any Oxygen Concentration - LOX-TRACE-1000-BLX

I. UK SST Fluorescent Trace Oxygen Transmitter Exposable to Any Oxygen Concentration LOX-TRACE-1000-BLX Product Features:

1. Can operate at any oxygen concentration without damaging the sensor

2. Highly selective and sensitive to oxygen

3. Long life, non-consumptive technology – no need to store in inert gas environment, low power consumption, high accuracy

4. Fast response, short purge time

5. Direct connection to controller via RS485 interface

6. Factory calibrated - user can recalibrate

II. UK SST Fluorescent Trace Oxygen Transmitter Exposable to Any Oxygen Concentration LOX-TRACE-1000-BLX Product Advantages:

1. Compact size, flow-through housing, sealed substrate

2. Free of harmful substances, compliant with RoHS & REACH

3. Insensitive to pressure fluctuations

4. Usable in vacuum applications

III. UK SST Fluorescent Trace Oxygen Transmitter Exposable to Any Oxygen Concentration LOX-TRACE-1000-BLX Electrical and Environmental Characteristics:

Supply Voltage (Vs)	8~30Vdc
Supply Current (Is)	<30mA (typical), <60mA (peak)
Output Type	RS485 Modbus RTU
Operating Temperature	-10℃ ~ +40℃
Storage Temperature	-30℃ ~ +50℃
Humidity	Dry clean gas
Atmospheric Pressure Range	260~1260mbar

IV. UK SST Fluorescent Trace Oxygen Transmitter Exposable to Any Oxygen Concentration LOX-TRACE-1000-BLX Performance Parameters:

Oxygen Measurement Range	0~1000 ppm (Vol)，0-1.2mbar（ppO2）
Response Time	T90 <30s (typical), Purge time ≤30min
Accuracy/Resolution	<2%FS/1ubar
Temperature Accuracy/Resolution	Reference only/0.1℃
Pressure Accuracy/Resolution	± 5mbar/1mbar（Lox-02）
O2% Accuracy/Resolution	Determined by ppO2 and pressure accuracy/1ppm
Lifetime	>5 years
