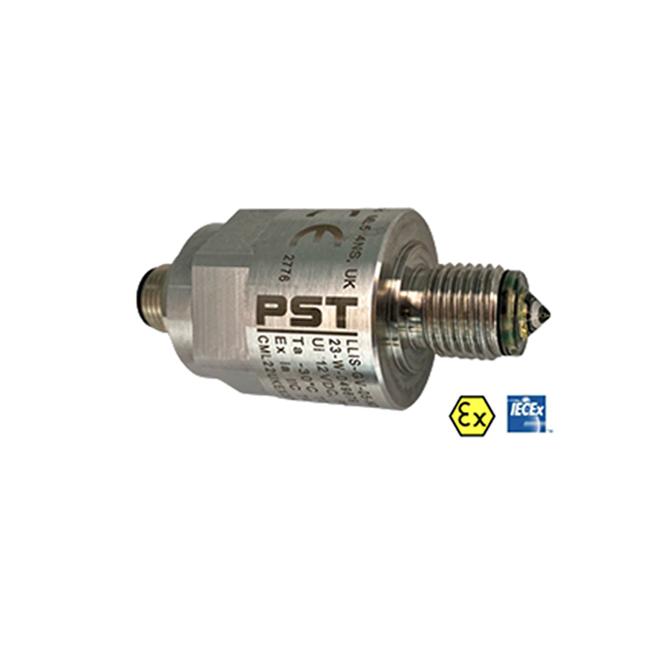

UK SST Intrinsically Safe Optical Liquid Level Switch Sensor - LLIS
ATEX, UKCA and IECEx certified
II 1 G Ex ia T4 Ga –30°C to +80°C (-22 °F…+176 °F)
Ex ia IIC T4 Ga –30°C to +80°C (-22 °F…+176 °F)

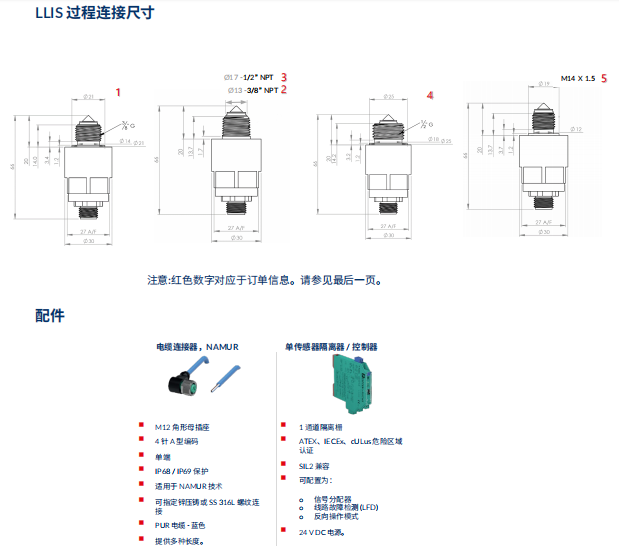

Metric and imperial process connection options
NAMUR output
Almost instantaneous response speed of optical sensor
No calibration required
316 stainless steel housing
Materials resistant to oil and most acids
Suitable for hydrogen
Cable and barrier accessories available
Product Model: LLIS
Product Introduction
UK SST Intrinsically Safe Optical Liquid Level Switch SensorLLIS：
Intrinsic safety for hazardous areas
Certified for hazardous areas, the PST intrinsically safe optical liquid level switch is designed and certified for use in demanding applications involving direct contact with hydrocarbons, fuels, and flammable or explosive liquids.
Our level switch uses infrared technology and the principle of total internal reflection to detect the presence or absence of most liquids. Almost instantaneous response time is standard, with a switching point repeatability of ±1 mm.
The PST level switch operates in a temperature range of -30°C to +80°C (-22°F…+176°F). The stainless steel housing and a variety of sensing tip material options ensure it is extremely robust and chemically resistant.
UK SST Intrinsically Safe Optical Liquid Level Switch Sensor Features:
- ATEX, UKCA and IECEx certified
- Ambient and liquid temperature –30 °C…+80 °C(-22 °F…+176 °F)
- Metric and imperial process connection options
- NAMUR output
- Almost instantaneous response speed of optical sensor
- No calibration required
- 316 stainless steel housing
UK SST Intrinsically Safe Optical Liquid Level Switch SensorLLISApplications:
Presence or absence of any liquid
Petrochemical / Oil and Gas
Heavy-duty vehicles
Leak detection
Hydraulic tanks
Tank / vessel level control
Downstream analyzer protection
