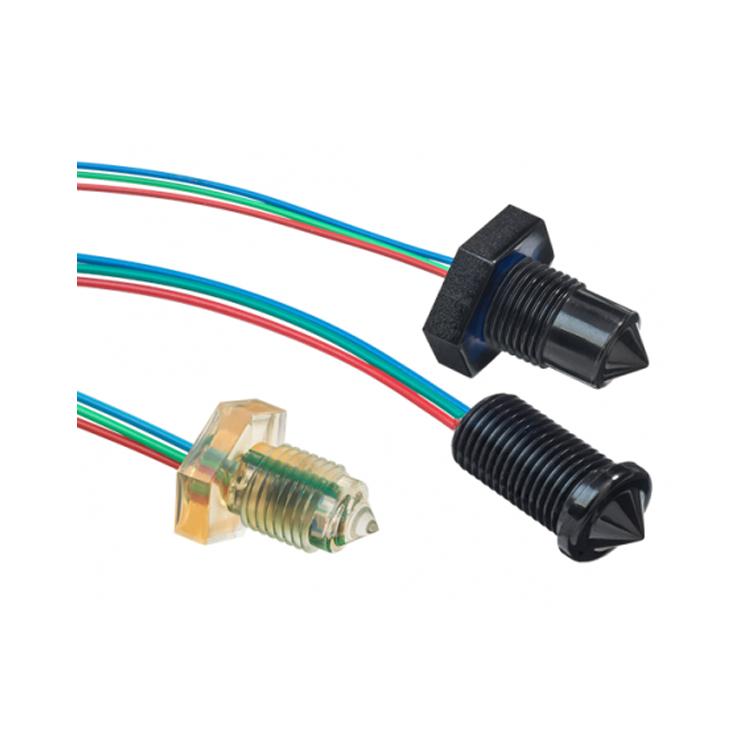

UK SST Liquid Level Sensor Liquid Level Switch - LLC500D
Level switch that can detect almost any type of liquid: oil or water-based
Material options: Polypropylene (standard) or Trogamid®

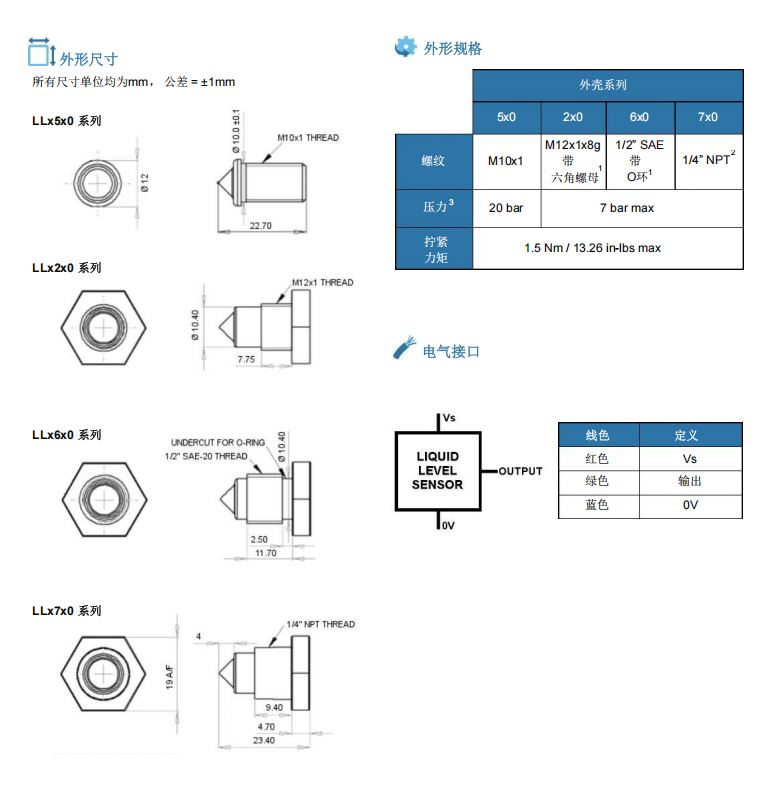

Multiple thread and terminal connection options
Low power consumption
Output voltage
Output high
Product Introduction
UK SST Liquid Level Sensor Liquid Level SwitchLLC500D Features:
Multiple thread and terminal connection options
Output high
UK SST Liquid Level Sensor Liquid Level SwitchLLC500D Parameters:
| Technical Specifications |
|
| Supply Voltage(Vs) |
4.5VDC to 15.4VDC |
| Supply Current (ls) |
2.5mA max. (Vs = 15.4VDC) |
| Output Sink and Source Current (lout) |
100mA |
| Operating Temperature |
Standard: -25°C ~ +80°C Extended:-40°C ~ +125°C |
| Storage Temperature |
Standard: -30°C ~ +85°C Extended:40°C ~ +125°C |
| Housing Material |
Trogamid® or Polypropylene |
| Sensor Termination |
24AWG, 250mm PTFE wire, 8mm tinned |
| Output ValueS |
|
| Output voltage |
(Vout): lout = 100mA |
| Output high |
Vout = Vs - 1V max |
| Output Low |
Vout = 0V + 0.5V max |
| PWM |
|
| Duty Cycle in Air |
25% ± 10% |
| Duty Cycle in Liquid |
75% ± 10% |
| Frequency |
2kHz ± 10% |
