Product Introduction

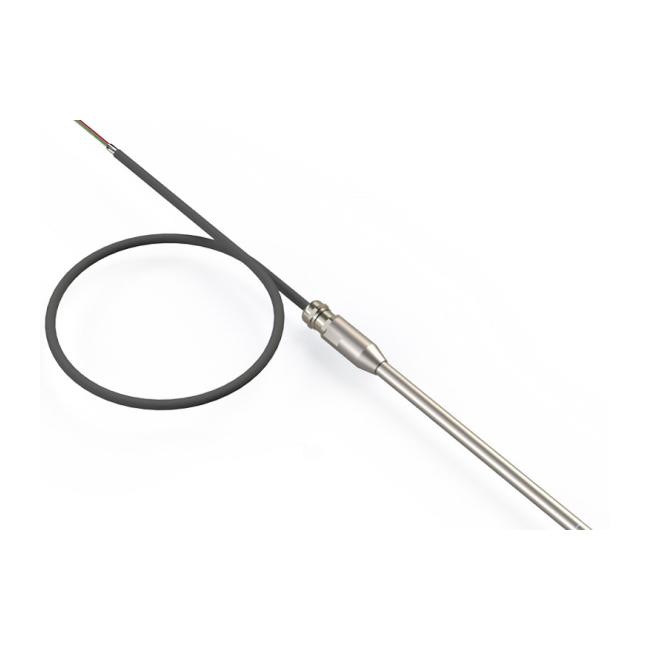

UK SST Zirconia Oxygen Sensor O2 Sensor Shielded Probe Series Long HousingO2S-FR-T6-Blank-SCRN Features:
Zirconia (ZrO2) sensing element
Long life, non-consumable technology
Integral heating element
High accuracy
Requires external interface board to operate
1.2m shielded cable
UK SST Zirconia Oxygen Sensor O2 Sensor Shielded Probe Series Long HousingO2S-FR-T6-Blank-SCRN Advantages:
No reference gas required
No temperature stabilization required
Available in three lengths: 220mm, 400mm, and 600mm
Shielded for industrial environments
UK SST Zirconia Oxygen Sensor O2 Sensor Shielded Probe Series Long HousingO2S-FR-T6-Blank-SCRN Parameters:
| Heater voltage |
|
| Operating (<15s response) |
4.35VDC± 0.1VDC(1.85A) |
| Standby |
2VDC(0.85A) |
| Operating (<4s response) |
4.55VDC± 0.1VDC(~1.85A) |
| Standby |
2VDC(0.85A) |
| Pump impedance at 700°C |
< 6kΩ |
| Allowable gas temperature |
-100°C~+400°C |
| Gas flow rate |
0—10 m/s |
| Repeated allowable acceleration |
5g |
| Accidental allowable acceleration |
30g |
| Oxygen pressure range |
2mbar—3bar max |
| Accuracy |
5mbar max |
| Internal operating temperature |
700°C |
| Response time (10-90% step) |
|
| Standard response sensor |
< 15s |
| Fast response sensor |
<4s |
| Warm-up time (before sensor operation) |
60s |
| Warm-up time (standby wake-up) |
20s |
| Output stabilization time |
180s |

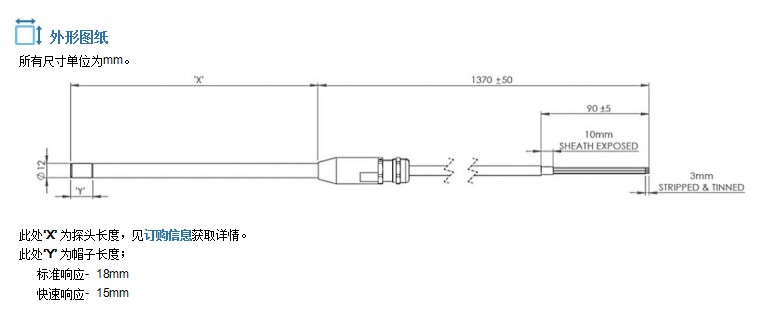

UK SST Zirconia Oxygen Sensor O2 Sensor Shielded Probe Series Long HousingO2S-FR-T6-Blank-SCRN Dimensions:

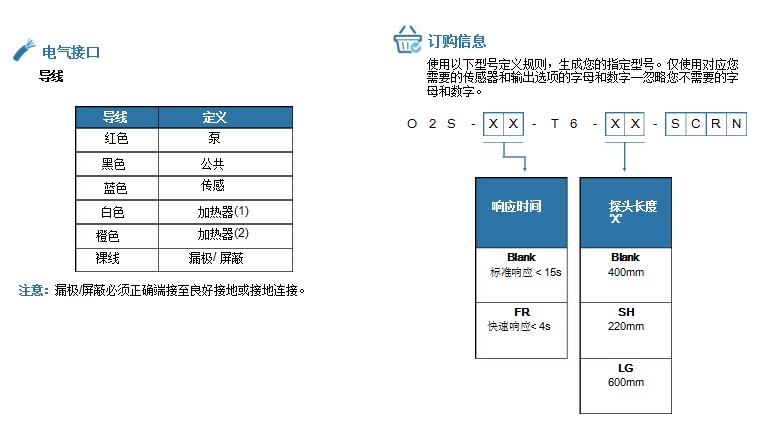

UK SST Zirconia Oxygen Sensor O2 Sensor Shielded Probe Series Long HousingO2S-FR-T6-Blank-SCRN Selection:
