Product Introduction
Range of 0~1000ppm, high measurement accuracy, repeatability within 2%.
Calibrated with standard gas, it features long lifespan, high precision, high repeatability, and high stability.

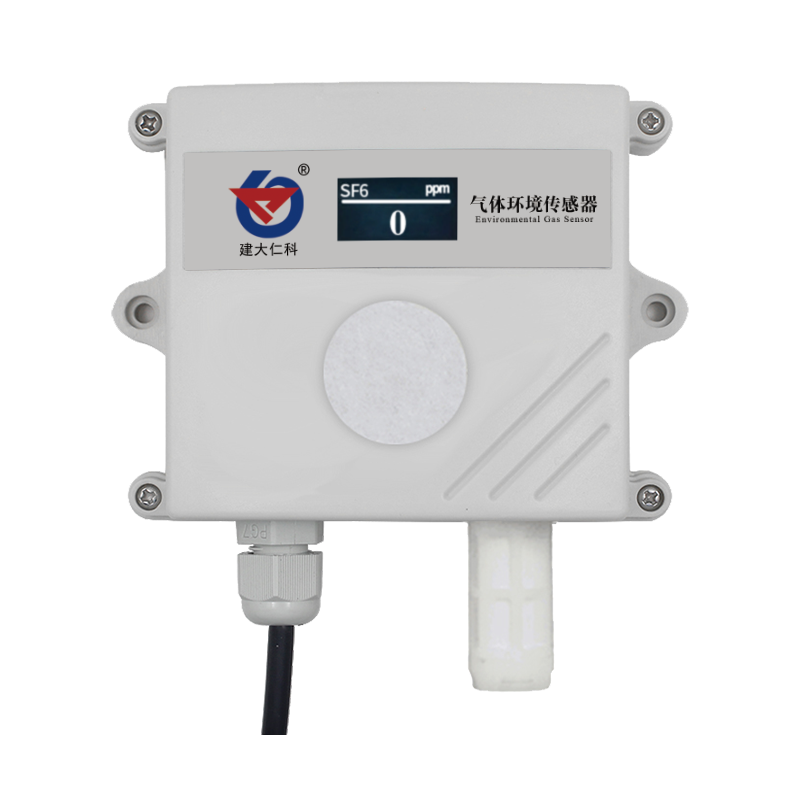

Devices with high-quality OLED display (optional) allow direct viewing of values through the screen, clearly visible even at night.
Adopts 10~30V DC wide voltage power supply, adaptable to various DC power sources on site.
485 type:
| Power supply | 10~30V DC |
| Average Power Consumption | 0.95W |
| Output signal | 485 |
| SF6 resolution | 1ppm |
| SF6 maximum permissible error | 0~1000ppm:±10% （@500ppm,60%RH,25℃） 0~2000ppm:±10% （@2000ppm,60%RH,25℃） |
| SF6 range | 0~1000ppm |
| Temperature Accuracy | ±0.5℃（25℃） |
| Humidity accuracy | ±3%RH（60%RH,25℃） |
| Temperature measurement range | -40℃~+80℃ |
| Humidity measurement range | 0~100%RH |
| Zero Drift | ±3ppm |
| 工作温度 | -20~50℃ |
| Working humidity | 15~95%RH (non-condensing) |
| Stability | ≤2% signal value/month |
| Response time | ≤30s |
| SF6 typical warm-up time | ≥30min |
| Repeatability | ≤3% |
| Pressure range | 90~110kPa |
Analog type:
| Power supply | 10~30V DC (0~10V output type uses 24V power supply) |
| Maximum power consumption | 1.78W |
| Output signal | 4~20mA、0~5V、0~10V |
| SF6 maximum permissible error | 0~1000ppm:±10% （@500ppm,60%RH,25℃） 0~2000ppm:±10% （@2000ppm,60%RH,25℃） |
| SF6 range | 0~1000ppm |
| Zero Drift | ±3ppm |
| 工作温度 | -20~50℃ |
| Working humidity | 15~95%RH (non-condensing) |
| Stability | ≤2% signal value/month |
| Response time | ≤30s |
| SF6 typical warm-up time | ≥30min |
| Repeatability | ≤3% |
| Pressure range | 90~110kPa |
WiFi type:
| Power supply | 10~30V DC |
| Output signal | WIFI |
| SF6 resolution | 1ppm |
| SF6 maximum permissible error | 0~1000ppm:±10% （@500ppm,60%RH,25℃） 0~2000ppm:±10% （@2000ppm,60%RH,25℃） |
| SF6 range | 0~1000ppm/2000ppm/3000ppm |
| Temperature Accuracy | ±0.5℃（25℃） |
| Humidity accuracy | ±3%RH（60%RH,25℃） |
| Temperature measurement range | -40℃~+80℃ |
| Humidity measurement range | 0~100%RH |
| Zero Drift | ±3ppm |
| 工作温度 | -20~50℃ |
| Working humidity | 15~95%RH (non-condensing) |
| Stability | ≤2% signal value/month |
| Response time | ≤30s |
| SF6 typical warm-up time | ≥30min |
| Repeatability | ≤3% |
| Pressure range | 90~110kPa |
| WIFI communication parameters | 802.11b/g/n |
| Security | Security mode WEP/WPA-PSK/WPA2-PSK Encryption type WEP/TKIP/AES |
| Configuration tool | Multi-function parameter configuration |
Main Application Areas
- SF6 Gas Insulated Switchgear — Monitors SF6 gas concentration and leakage in GIS and high-voltage switchgear to ensure safe operation and prevent insulation failures.
- Power Plants and Substations — Provides continuous SF6 leak detection in electrical power facilities, protecting personnel and equipment from gas accumulation.
- Industrial Gas Monitoring — Used in semiconductor manufacturing, magnesium casting, and other industrial processes where SF6 is generated or utilized.
- Environmental Monitoring — Tracks SF6 emissions in compliance with environmental regulations due to its high global warming potential.
- Laboratory and Research — Enables precise SF6 concentration measurement in research settings for gas analysis and experimental studies.
