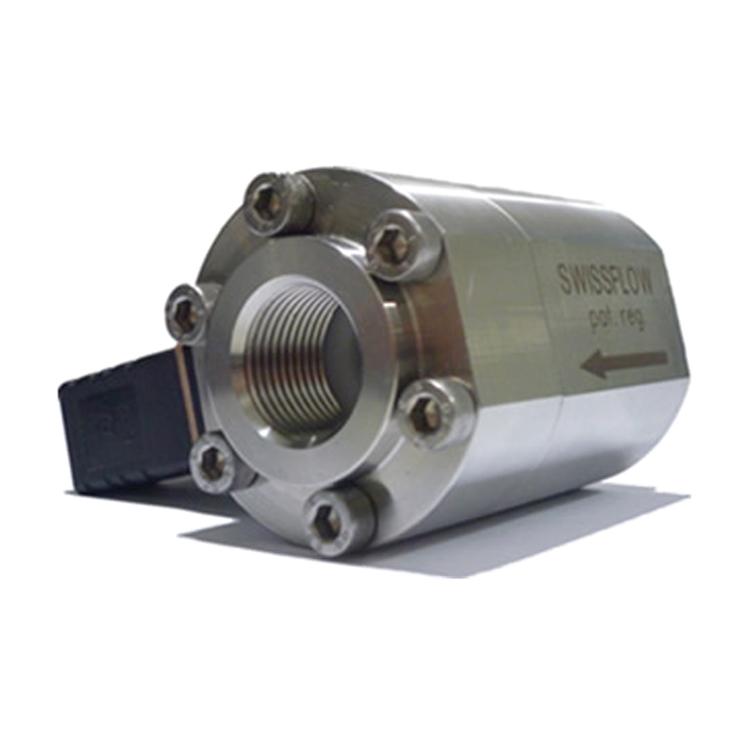

Dutch Swissflow General-Purpose Flow Meter - SF-800/6
Accuracy (Repeatability <0.30%)
Durability (Almost No Wear)
Reliability (12-Month Warranty)
Product Introduction
I. Dutch Swissflow General-Purpose Flow MeterSF-800/6 Description:
Basic Information: SF-800/6 (Stainless Steel - High Pressure)
The patented SF800 is a cost-effective general-purpose flow meter, widely used for various applications and fluids.
The core of the sensor is a turbine with an ultra-light (<0.03g) VECTRA rotor. The rotor's weight and the turbine's internal geometry allow it to float in the medium, enabling it to rotate with almost no friction. The integrated PCB emits an infrared signal that is interrupted by the rotor's three blades. SMD components convert the interrupted signal into pulses to form square wave pulses for external media.
II. Dutch Swissflow General-Purpose Flow MeterSF-800/6 Features:
High Quality:
- Accuracy (Repeatability <0.30%)
- Durability (Almost No Wear)
- Reliability (12-Month Warranty)
III. Dutch Swissflow General-Purpose Flow MeterSF-800/6 Parameters:
| Range |
|
| Flow Rate |
0.5 - 20 L/min (Other flow ranges available on request) |
| Temperature |
-20 - +90 °C |
| Viscosity |
1 - 1000 Cst |
| Working Pressure |
250 bar |
| Maximum Pressure |
750 bar (Static Pressure) |
| Reliability |
|
| Interchangeability |
+/- 2.25% (Can be reduced to below 1 on request) |
| Accuracy (Linearity) |
+/- 1.00% |
| Accuracy (Repeatability) |
+/- 0.30% |
| Technology |
|
| Process Connection |
3/8" BSP (Female) |
| Electrical Connection |
Hirschmann Connector |
| Power Consumption |
12 - 36 mA/s |
| Output |
Square Wave Pulse |
| Output Frequency |
100 - 2000 Hz (Depending on Flow Rate) |
| K-Factor |
+/- 5500 Pulses/L |
| Materials |
|
| Rotor |
Vectra |
| Inner Housing |
PVDF |
| Outer Housing |
High-Grade Stainless Steel: AISI 303 |
| Seals |
EPDM or Viton |
