Temperature and Level Integrated Transmitter - CS-WPT400
±0.5%F.S accuracy; OEM available; diffused silicon oil-filled core; multiple ranges and signal outputs; submersible and threaded mounting types.
Applications: hydrological monitoring, constant pressure water supply, variable frequency water supply, tail dam water level, wastewater treatment, metallurgy and chemical industry.
Product Introduction
I. Temperature and Level Integrated Transmitter CS-WPT400 Product Features and Application Fields
±0.5%F.S accuracy; OEM available; diffused silicon oil-filled core; multiple ranges and signal outputs; submersible and threaded mounting types.
Applications: hydrological monitoring, constant pressure water supply, variable frequency water supply, tail dam water level, wastewater treatment, metallurgy and chemical industry.

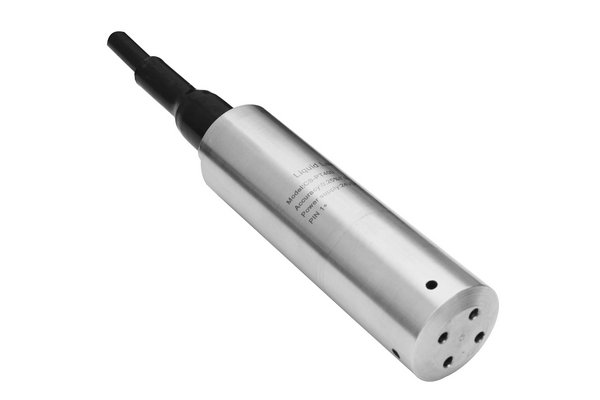

II. Temperature and Level Integrated Transmitter CS-WPT400 Product Description
CS-WPT400 series is a transmitter that measures temperature and pressure simultaneously. It features high reliability, high stability, and high accuracy. Widely used for gas and liquid pressure detection, such as water, oil, mildly corrosive liquids and gases.
This product adopts 1Cr18Ni9Ti stainless steel structure, oil-filled pressure core selected from foreign brands, and dedicated programmable transmitter conversion circuit, allowing convenient and precise calibration of zero and full scale.
Two-wire loop output; three-wire has voltage and current outputs.
Can be configured with wear-resistant, oil-resistant, acid-alkali-resistant, high-strength special breathable cables according to different usage sites.
III. Temperature and Level Integrated Transmitter CS-WPT400 Technical Parameters
| General |
Value |
Remarks |
|||
| Pressure Range |
0~3......200 mH2O |
1mH2O =9.81KPa |
|||
| Temperature Range |
-40℃~85℃ |
||||
| Overload Pressure |
1.5 times rated pressure (1.5X) |
||||
| Burst Pressure |
3 times rated pressure (3X) |
||||
| Accuracy |
±0.5%F.S |
||||
| Stability |
Typical 0.1%F.S/year, max: 0.2%F.S/year |
||||
| Operating Temperature |
-40℃~85℃ |
||||
| Compensated Temperature |
-10℃~70℃ |
|
|||
| Compatible Media |
All corrosive media compatible with 1Cr18Ni9Ti |
|
|||
| Electrical Performance |
Two-wire |
Three-wire |
|
||
| Output Signal |
4~20mA |
1~5V |
0.5~4.5V |
|
|
| Power Supply |
10~30Vdc |
8~30Vdc |
5V(ratio) |
|
|
| Load Resistance |
(U-10)/0.02(Ω) |
＞100kΩ |
|
||
| Insulation |
＞100M Ω@50V |
|
|||
| Electrical Connection |
Waterproof cable gland + two-stage rectangular ring + sealing ring + sealant + potting compound, five-level sealing, IP68 protection |
|
|||
| Pressure Connection |
Submersible, threaded: M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
|
|||
| Pressure Type |
Gauge G, sealed gauge S |
Response time: 10ms |
|||
| Electromagnetic Compatibility |
EMC emission: EN50081-1/-2; EMC immunity: EN50082-2 |
|
|||
