Product Introduction

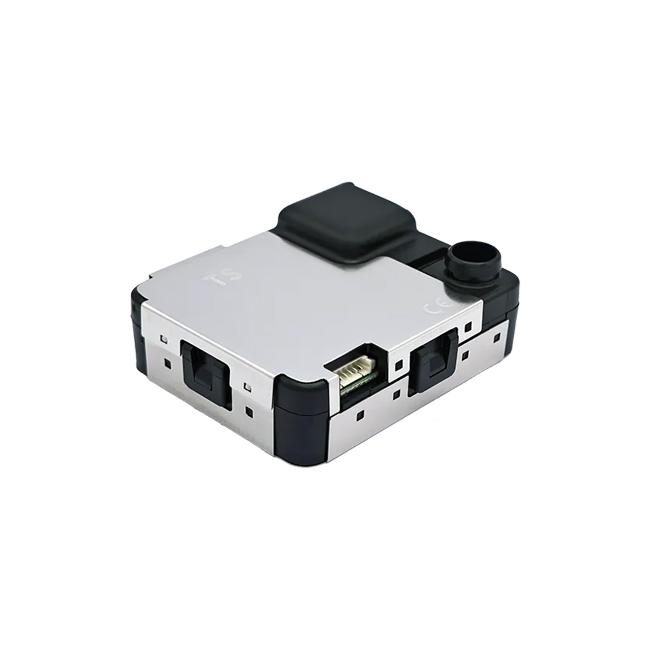

French TERA PM1 PM2.5 PM10 Particulate Matter SensorNextPM Description:
The P3 particulate matter sensor is a cost-effective imported particulate matter sensor based on the light scattering particle counting principle. It uses patented proprietary technology, built-in machine learning algorithms, built-in temperature and humidity sensors, and a heating system. Compared to similar domestic products in the same price range, it significantly improves accuracy in PM2.5 and PM10, providing precise PM1, PM2.5, and PM10 particulate matter monitoring solutions.
French TERA PM1 PM2.5 PM10 Particulate Matter SensorFeatures:
High Precision: Patented proprietary technology, built-in temperature and humidity sensors and heating system, built-in machine learning algorithms, providing precise PM1, PM2.5, and PM10 particulate matter monitoring solutions.
Low Maintenance Cost: Continuous operation for over 15,000 hours, no consumables, very low maintenance cost.
Suitable for Outdoor Use: Operating temperature range -20°C to 70°C, no clogging at high concentrations, with heating and dehumidification assistance, it can still work normally under high temperature, high humidity, and high dust conditions.
French TERA PM1 PM2.5 PM10 Particulate Matter SensorApplications:
French TERA PM1 PM2.5 PM10 Particulate Matter SensorParameters:
| Measurement Parameter |
Value |
Unit |
| Measurement Principle |
Particle counting light scattering method |
|
| Measurement Factors |
PM1 PM2.5 PM10 Temperature Humidity |
pcs/m3 or µg/m3 °C % |
| Measurement Range |
0 - 1000 |
μg/m3 |
| Particle Range |
0,.3 - 10 |
Μm |
| Repeatability |
< 3 |
% |
| Detection Limit |
< 1 |
μg/m3 |
| Linearity |
< 5 |
% |
| Temperature Drift |
< 0.01 |
µg/m3/℃ |
| Communication Interface |
|
|
| Communication Protocol |
UART/MODBUS |
|
| Resolution |
1 |
S |
| Filter Settings |
10 / 60 / 900 |
S |
| Electrical Characteristics |
|
|
| Power Supplies |
5 |
VDC |
| Average Power Consumption |
0.4 |
W |
| Peak Power Consumption |
1.5 |
W |
| Sleep Power Consumption |
< 0.01 |
W |
| Dimensions/Weight |
|
|
| Dimensions (L × W × H) |
62 × 52 × 23 |
mm |
| Weight |
45 |
g |
| Operating Temperature |
|
|
| Temperature Humidity Pressure |
-20~+70 0-95 50 -150 |
℃ % (Non-condensing) kpa |
