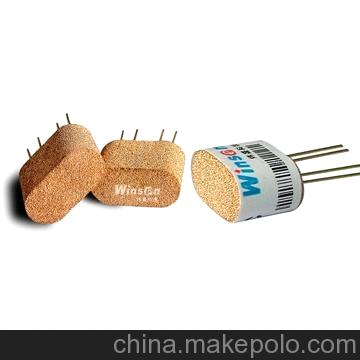

Thermal Conductivity CO2 Sensor (CO2 Sensor) - MD62
Wide detection range (0-100% VOL)
Linear bridge output voltage
Fast response speed
Good repeatability
Stable and reliable element operation
No catalyst poisoning
Can detect in oxygen-free or oxygen-deficient environments
Product Introduction
-
Thermal Conductivity CO2 Sensor (CO2 Sensor) MD62 Product Description
-
The MD62 gas sensing element is made based on the principle that the total thermal conductivity of mixed gas changes with the content of the gas to be analyzed. It consists of a detection element and a compensation element paired to form two arms of a bridge. When encountering combustible gas, the resistance of the detection element decreases; when encountering non-combustible gas, the resistance of the detection element increases (air background). The bridge outputs a voltage variable, which increases proportionally with gas concentration. The compensation element provides reference and temperature compensation.
-
Thermal Conductivity CO2 Sensor (CO2 Sensor) MD62Sensor Features
-
Wide detection range (0-100% VOL)
Linear bridge output voltage
Fast response speed
Good repeatability
Stable and reliable element operation
No catalyst poisoning
Can detect in oxygen-free or oxygen-deficient environments
-
Thermal Conductivity CO2 Sensor (CO2 Sensor) MD62Main Applications
-
Detection of non-combustible gases such as carbon dioxide, carbon tetrachloride, and Freon in civil and industrial fields
-
Thermal Conductivity CO2 Sensor (CO2 Sensor) MD62Technical Specifications
| Measurement Range |
0~100%vol |
|
| Operating Voltage(V) |
3.0±0.1 |
|
| Operating Current(mA) |
@100 |
|
|
Sensitivity mV |
10%Methane |
>12 |
| 10%Butane |
>8 |
|
| 10%CO2 |
>5 |
|
| Linearity (%） |
0~5 |
|
| Response Time (90%) |
Less than10seconds |
|
| Recovery Time (90%) |
Less than30seconds |
|
| Operating Environment |
-20－+60℃Below95%RH |
|
| Storage Environment |
-30—+80℃ Below95%RH |
|
| Dimensions (mm） |
10×14×18 |
|
