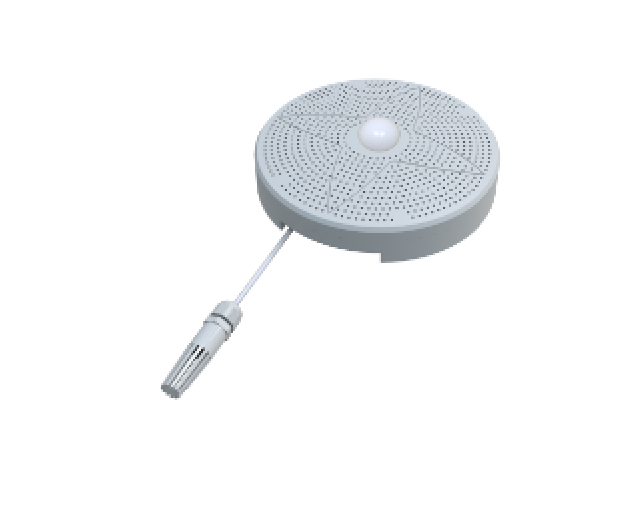

Product Introduction
Specially used for public toilet environment detection, can integrate up to 14 measurement elements simultaneously, and uses NH3, H specially for toilet environments2S sensor, high sensitivity.
The device uses original imported sensors and control chips, featuring high precision, high resolution, and good stability.
Uses a circular curved housing, and with the base we provide, it can be installed on the ceiling or wall-mounted.
Table 1:
| DC Power Supply (Default) | DC 10-30V |
| Maximum power consumption | 485: 1.5W (24V DC power supply), 4G: 1.6W (24V DC power supply), WIFI: 1.6W (24V DC power supply), ETH: 1.6W (24V DC power supply) |
| Detection parameters | NH3, H2S, temperature, humidity, PM2.5, PM10, TSP, air pressure, light, noise, odor, TVOC, CO2, formaldehyde, O3, CO, O2, SO2, NO2, H2, smoke |
| Working Environment | Temperature -10℃-55℃; Humidity 0~95%RH non-condensing |
| 信号输出 | RS485 output (standard ModBus-RTU protocol), 4G wireless transmission, WIFI wireless transmission, RJ45 network port upload, supports static IP address, automatic IP address acquisition function, supports cross-gateway, domain name resolution |
| Product material | ABS |
| 安装方式 | Wall-mounted, ceiling-mounted |
Table 2:
| Detection parameters | Measuring range | 分辨率 | Accuracy | Preheating Time |
| NH3 | 0~20ppm | 0.001ppm | ±8%FS（@20ppm、25℃、50%RH） | ≥5 minutes |
| NH3(Semiconductor type) | 0~50ppm | 0.001ppm | ±15%FS（@50ppm、25℃、50%RH） | ≥24H |
| PM2.5 | 0~1000μg/m3 | 1μg/m3 | Particle counting efficiency: 50%@0.3μm，98%@>=0.5μm。 PM2.5 accuracy: ±3%FS (@100μg/m3、25℃、50%RH） |
≤2min |
| PM10 | 0~1000μg/m3 | |||
| TSP | 0~20000μg/m3 | 1μg/m3 | ±25% or ±40μg/m3Take the larger value (@1000μg/m3，25℃,50%RH） | |
| Temperature | -40℃~+120℃, default -40℃~+80℃ | 0.1℃ | ±0.5℃(25℃） | |
| Humidity | 0%RH-100%RH | 0.1%RH | ±3%RH（60%RH,25℃） | |
| Atmospheric pressure | 0~120kPa | 0.1kPa | ±0.15kPa@25℃101kPa | |
| Illuminance | 0~200,000 Lux | 1Lux | ±7%(25℃) | |
| TVOC | 0~60000ppb | 1ppb | Typical accuracy:8%FS(@C4H8，50000ppb，25℃，50%RH) | ≥24H |
| Carbon dioxide | 0-5000ppm (effective range: 400-5000ppm) | 1ppm | ±(50ppm+ 3%F·S) @(25℃、400~5000ppm) | 2min (usable), 10min (maximum accuracy) |
| Formaldehyde | 0~5ppm | 0.01ppm | Accuracy: ±5%FS (@1ppm, 25℃, 50%RH) | ≥5 minutes |
| Ozone | 0~10ppm | 0.001ppm | Accuracy: ±6%FS (@5ppm, 25℃, 50%RH) | ≥5 minutes |
| O2 | 0~30%Vol | 0.1%Vol | ±2%FS | ≥5 minutes |
| H2S | 0~20ppm | 0.001ppm | ±2ppm or ±10% | ≥5 minutes |
| CO | 0~1000ppm | 1ppm | ±5ppm or ±10% | ≥5 minutes |
| NO2 | 0~20ppm | 0.001ppm | ±5%FS | ≥5 minutes |
| SO2 | 0~20ppm | 0.001ppm | ±5%FS | ≥5 minutes |
| H2 | 0~1000ppm | 1ppm | ±5%FS | ≥5 minutes |
| Noise | 30~130dB | 0.1dB | ±0.5dB (at reference pitch, 94dB@1kHz) | |
| Odor (electrochemical type) | 0~5ppm | 0.001ppm | Typical accuracy: ±10%FS (@H2S，5ppm） | ≥5 minutes |
| Odor (high precision) | 0~5ppm | 0.001ppm | Typical accuracy: ±5%FS (@H2S，500ppb） | ≥5 minutes |
| Odor (semiconductor type) | 0.03~3ppm | 0.001ppm | ±13%FS（@C2H6O，5ppm,20℃，65%RH） | ≥60 minutes |
| Smoke | 0~10000ppm | 1ppm | ±5%FS（@C3H8，2000ppm、25℃、50%RH） | ≥24H |
