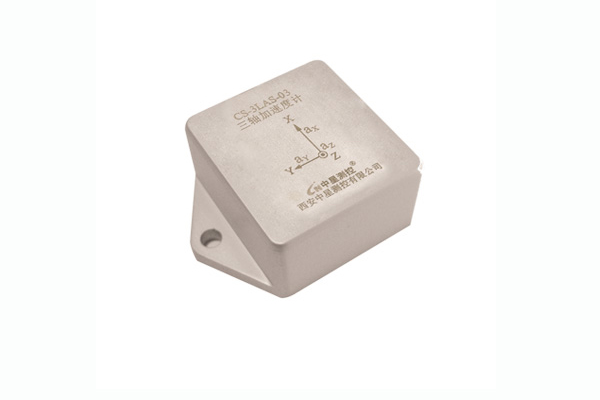

Three-axis accelerometer - CS-3LAS-03
High frequency response up to 22KHz, analog voltage output, wide measurement range, small size, light weight, excellent impact and vibration resistance
Product introduction
Features of three-axis accelerometer CS-3LAS-03
High frequency response up to 22KHz, analog voltage output, wide measurement range, small size, light weight, excellent impact and vibration resistance
Main application areas of three-axis accelerometer CS-3LAS-03
Monitoring aeolian vibration of power lines, vibration monitoring of mechanical equipment
Main technical specifications of three-axis accelerometer CS-3LAS-03
| Model |
CS-3LAS-03 |
||
| Electrical characteristics |
|||
| Supply voltage |
12±0.5 VDC |
||
| Supply current |
≤12 mA |
||
| Output method |
0.5～4.5 V |
||
| Performance specifications |
|||
| Axes |
X |
Y |
Z |
| Range (Note 1) |
±20 g |
||
| Bandwidth (Note 2) |
≤ 10k Hz |
||
| Sensitivity |
50±5 mV / g |
||
| Resolution |
≤ 0.01 g |
||
| Nonlinearity |
≤ 0.5% Fs |
||
| Zero bias (at 25°C) |
1.5±0.1 V |
||
| Start-up time |
≤1 s |
||
| Environmental characteristics |
|||
| Operating temperature |
-40℃～+70℃ |
||
| Storage temperature |
-40℃～+125℃ |
||
| Shock resistance (0.5ms) |
4000 g |
||
| Physical characteristics |
|||
| Weight |
40 g |
||
| Dimensions |
40×26×15 mm |
||
