Product introduction

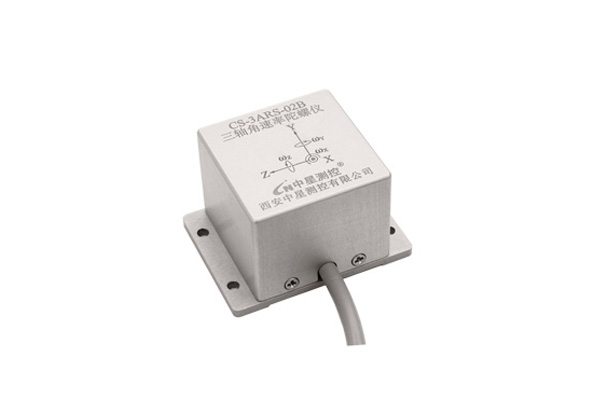

I.Three-axis gyroscopeCS-3ARS-02B product features:
Analog voltage output, wide measurement range, high shock resistance, small size, and light weight
II. Main application areas of the three-axis gyroscope CS-3ARS-02B:
Telemetry systems, platform control systems
III. Main technical specifications of the three-axis gyroscope CS-3ARS-02B:
| Model |
CS-3ARS-02B |
||
| Electrical characteristics |
|||
| Supply voltage |
5±0.25 VDC |
||
| Supply current |
≤ 30 mA |
||
| Output method |
0.5~4.5V |
||
| Performance specifications |
|||
| Axis |
X |
Y |
Z |
| Range (Note 1) |
±100゜/s |
||
| Bandwidth (Note 2) |
≥40 Hz |
||
| Sensitivity |
15±2 mV/°/s |
||
| Resolution |
≤ 0.04゜/s |
||
| Nonlinearity |
≤ 0.5% Fs |
||
| Zero bias (at 25°C) |
2.5±0.1 V |
||
| Zero bias stability |
≤ 0.1゜/s |
||
| Start-up time |
≤ 0.035 s |
||
| Environmental characteristics |
|||
| Operating temperature |
-40℃～+70℃ |
||
| Storage temperature |
-40℃～+125℃ |
||
| Shock resistance (0.5ms) |
2000 g |
||
| Physical characteristics |
|||
| Weight |
90 g |
||
| Dimensions |
48.5×36×30 mm |
||
Note: ① Selectable from ±50 to ±5500°/s;
② Selectable bandwidth ≤300Hz;
All technical specifications vary with range and bandwidth.
