Product introduction

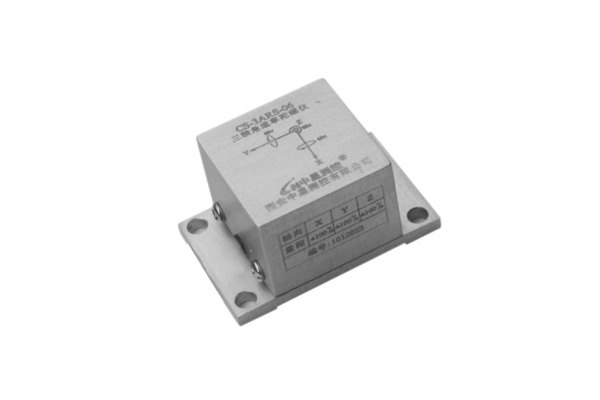

I.Three-axis gyroscopeCS-3ARS-06 product features:
Economical product, analog voltage output, small size, light weight, high shock resistance
II. Main application areas of the three-axis gyroscope CS-3ARS-06:
High-end toy cars, digital cameras, robotics
III. Main technical specifications of the three-axis gyroscope CS-3ARS-06:
| Model |
CS-3ARS-06 |
||
| Electrical characteristics |
|||
| Supply voltage |
5±0.25 VDC |
||
| Supply current |
≤ 30 mA |
||
| Output method |
0~3V |
||
| Performance specifications |
|||
| Axis |
X |
Y |
Z |
| Range (Note 1) |
±100゜/s |
||
| Bandwidth (Note 2) |
≥140 Hz |
||
| Sensitivity |
10±2 mV/°/s |
||
| Resolution |
≤ 0.1゜/s |
||
| Nonlinearity |
≤ 1% Fs |
||
| Zero bias (at 25°C) |
1.5±0.1 V |
||
| Zero bias stability |
0.2゜/s |
||
| Start-up time |
≤50 s |
||
| Environmental characteristics |
|||
| Operating temperature |
-40℃～+70℃ |
||
| Storage temperature |
-40℃～+125℃ |
||
| Shock resistance (0.5ms) |
3000 g |
||
| Physical characteristics |
|||
| Weight |
15 g |
||
| Dimensions |
28×18×14.8 mm |
||
Note: ① Selectable ±100 to ±400°/s;
② Selectable bandwidth ≤140Hz;
All technical specifications vary with range and bandwidth.
