TS - TS-FTDO2Y
Temperature
Range: -20~80°C / 0~50°C / -40~60°C (multiple ranges optional, user-configurable)
Accuracy: ±0.3°C (average over full range)
Power consumption: 15mA (typical)
Resolution: 0.1°C
Response time 6τ (63%): min=5s, max=30s
Long-term stability: <0.04°C/year
Temperature output signal: 0-5V voltage signal
Product introduction

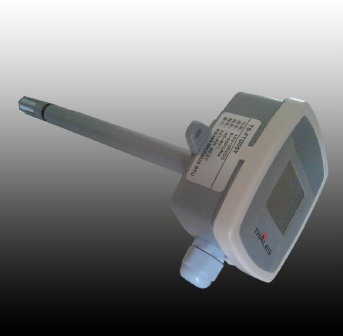

TS-FTDO2Y duct-type temperature and humidity transmitterDescription
TS-FTDO2Y duct-type temperature and humidity transmitter uses original imported temperature and humidity sensing modules, with signal processing by a high-performance microcontroller, the overall performance is superior and long-term stability is more outstanding.
TS-FTDO2Y duct-type temperature and humidity transmitterProduct parameters:
Temperature
Range: -20~80°C / 0~50°C / -40~60°C (multiple ranges optional, user-configurable)
Accuracy: ±0.3°C (average over full range)
Power consumption: 15mA (typical)
Resolution: 0.1°C
Response time 6τ (63%): min=5s, max=30s
Long-term stability: <0.04°C/year
Temperature output signal: 0-5V voltage signal
Relative humidity
Range: 0~99.9%RH
Accuracy (including nonlinearity, hysteresis, and repeatability): ±3%RH
Factory calibration uncertainty:
±0.6%RH(0~40%RH) / ±1.0%RH(40~97%RH)
Response time (90%) in still air: 8s
Resolution: 0.1%RH
Long-term stability: <0.05%RH/year
Operating and storage environment
Operating ambient temperature: -40~+85°C
Operating ambient humidity: 0~99.9% non-condensing
Operating voltage: 12~36VDC
Storage temperature: 10–50°C (0–125°C peak)
Storage humidity: 20–60%RH
(Note: Unless otherwise specified, all parameters above are measured at 25°C.)
