Product introduction

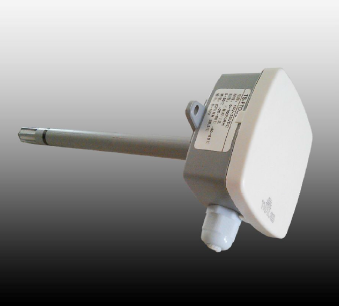

TS-FTDO5 duct-type temperature and humidity transmitter parameters:
Temperature
Range: -20~80℃
Accuracy: ±0.3℃ (average over full range)
Power consumption: 15mA (typical)
Resolution: 0.1℃
Response time 6τ (63%): min=5s, max=30s
Long-term stability: <0.04℃/year
Relative humidity
Range: 0~99.9%RH
Accuracy (including non-linearity, hysteresis, and repeatability): ±3%RH
Factory calibration uncertainty:
±0.6%RH(0~40%RH) / ±1.0%RH(40~97%RH)
Response time (90%) in still air: 8s
Resolution: 0.1%RH
Long-term stability: <0.05%RH/year
Temperature and humidity output signal: MODBUS-RTU RS485
Operating and storage environment
Operating ambient temperature: -40~+85℃
Operating ambient humidity: 0~99.9% non-condensing
Operating voltage: 12~36VDC
Storage temperature: 10 – 50°C (0 – 125°C peak)
Storage humidity: 20 – 60%RH
(Note: All parameters above are measured at 25℃ unless otherwise specified)
