Product introduction

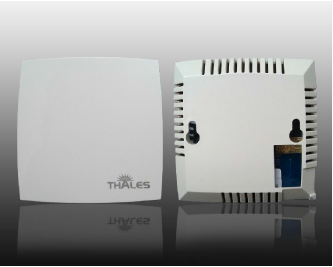

I. Description of TS-TWI5 wall-mounted temperature transmitter
The TS-TWI5 wall-mounted temperature transmitter uses an original imported temperature sensing module, with signal processing by a high-performance microcontroller, the overall performance is superior and long-term stability is more outstanding.
II. TS-TWI5 wall-mounted temperature transmitterProduct parameters:
Range: -20~85℃
Accuracy: ±0.5℃ (average over full range)
Power consumption: 15mA (typical)
Resolution: 0.1℃
Response time 6τ(63%): min=5s, max=30s
Long-term stability: <0.04℃/year
Temperature output signal: RS485 MODBUS-RTU
Operating and storage environment
Operating ambient temperature: -40~+85℃
Operating ambient humidity: 0~99.9% non-condensing
Operating voltage: 15~36VDC
Storage temperature: 10 – 50°C (0 – 125°C peak)
Storage humidity: 20 – 60%RH
(Note: All parameters above are measured at 25℃ unless otherwise specified.)
