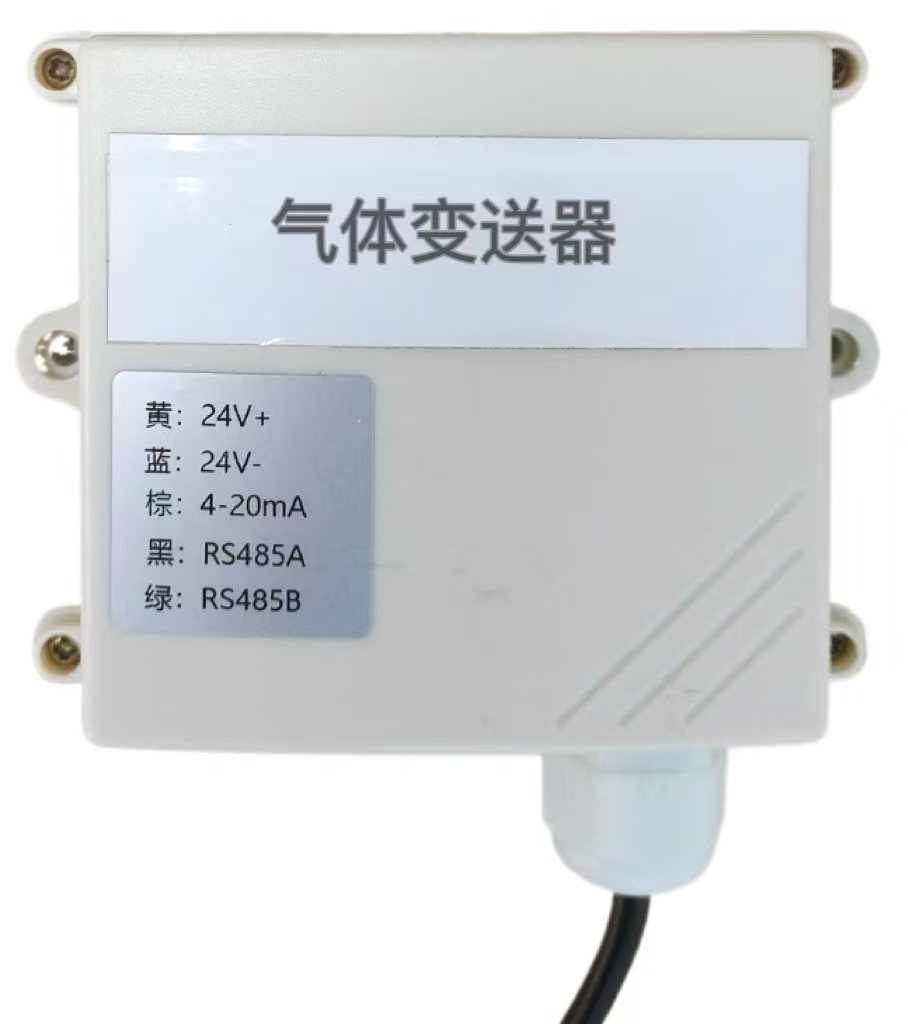

Product Introduction
TVOC measurement range is 0~60000ppb;
Adopts a highly sensitive gas detection probe with mature technology, and uses a high-performance signal acquisition circuit, ensuring stable signals and high accuracy.
| DC Power Supply (Default) | DC 10-30V |
| Maximum power consumption | 485 type: 0.5W Analog type: 0.4W WiFi type: 0.8W (24VDC) |
| Working Environment | -40℃~+80℃, 0%RH~95%RH non-condensing |
| TVOC measurement range | 0~60000ppb |
| Measurement object | Volatile Organic Compounds |
| TVOC display resolution | 1ppb |
| Data refresh time | 485 type: 1s Analog type: 2s |
| TVOC measurement accuracy | Typical accuracy: 8%FS(@C4H8，50000ppb，25℃，50%RH) |
| Output signal | RS485 (Modbus protocol), 4~20mA, 0~5V, 0~10V, WiFi, optional |
| 安装方式 | Wall-mounted installation |
| Preheating Time | ≥24h |
Main Application Areas
- Industrial Air Quality Monitoring — Continuous monitoring of TVOC concentrations in manufacturing facilities to ensure worker safety and regulatory compliance.
- Indoor Environmental Monitoring — Real-time detection of volatile organic compounds in offices, homes, and public buildings to maintain healthy indoor air quality.
- HVAC System Integration — Integration with building automation and HVAC systems to optimize ventilation based on TVOC levels.
- Chemical and Petrochemical Plants — Monitoring TVOC emissions in chemical processing areas to prevent hazardous exposure and detect leaks.
- Smart Building Management — Connecting to IoT platforms for centralized monitoring and data analysis of air quality across multiple locations.
Keywords：TVOC transmitter, gas sensor, volatile organic compounds, air quality monitor, industrial TVOC sensor, RS485 TVOC transmitter, indoor air quality, VOC detector
