Universal Input Smart Type 4 - JTR-1002
Input types: 2/3/4-wire PT100/PT1000 and tungsten-rhenium/B/R/S/N/K/J/T/E thermocouples
Output method: two-wire 4~20mA current loop
Output resolution: 1uA
Data update rate: 2 seconds - thermocouple, 1 second - 2/4-wire RTD, 1.5 seconds - 3-wire RTD
Thermocouple cold junction compensation accuracy (AT 25°C): (max) ±0.05°C
Operating environment: -35~85°C, 0~95% relative humidity
Product Introduction

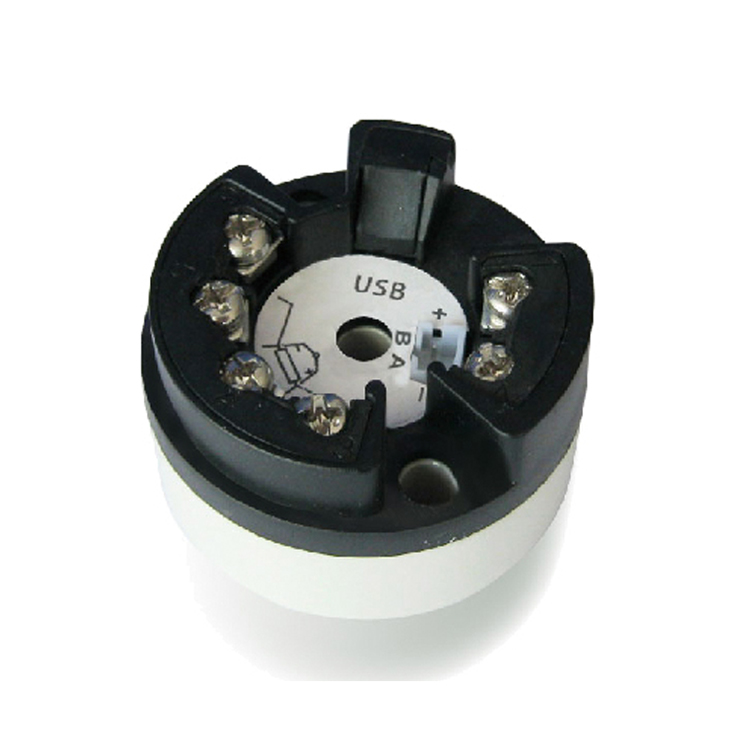

JTR-1002 Universal Input Smart Type 4-20mA Temperature Transmitter
Input types: 2/3/4-wire PT100/PT1000 and tungsten-rhenium/B/R/S/N/K/J/T/E thermocouples
Output method: two-wire 4~20mA current loop
Output resolution: 1uA
Data update rate: 2 seconds - thermocouple, 1 second - 2/4-wire RTD, 1.5 seconds - 3-wire RTD
Thermocouple cold junction compensation accuracy (AT 25°C): (max) ±0.05°C
Operating environment: -35~85°C, 0~95% relative humidity
Special features:
Can be matched with sensors for high-precision measurement.
For thermocouple input, an external temperature compensation element can be connected for real-time compensation.
Electrical isolation: non-isolated
Power supply: 6~36VDC

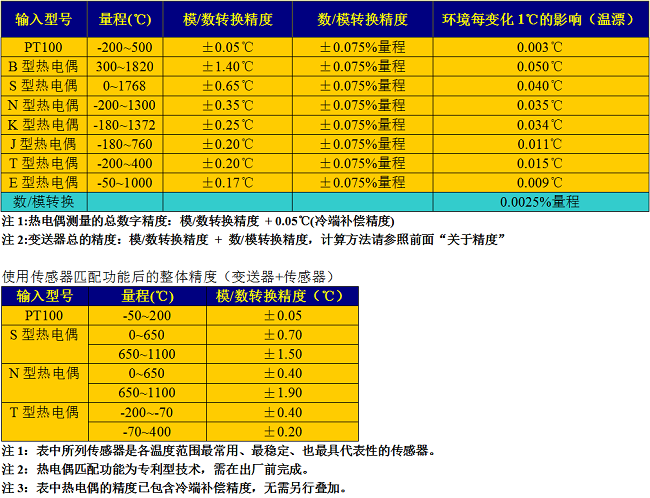

Accuracy (AT 25°C max):
