Product Introduction
-

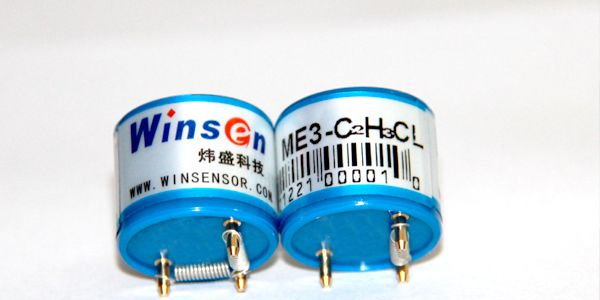

Vinyl Chloride Sensor (C2H3Cl Sensor) ME3-C2H3Cl Product Description
-
The ME3-C2H3Cl electrochemical gas sensor is based on the electrochemical principle, utilizing the measured gas to undergo corresponding oxidation-reduction reactions on the working electrode and counter electrode of the sensor and release charges, forming a current through the external circuit. The current magnitude is proportional to the gas concentration, thereby achieving quantitative measurement of the target gas.
-
Vinyl Chloride Sensor (C2H3Cl Sensor) ME3-C2H3ClSensor Features
-
Low Power Consumption
High Precision
High Sensitivity
Wide Linear Range
Strong Anti-Interference Capability
Excellent Repeatability and Stability
-
Vinyl Chloride Sensor (C2H3Cl Sensor) ME3-C2H3ClMain Applications
-
Widely suitable for detection of C2H3Cl in industrial and environmental applications.
-
Vinyl Chloride Sensor (C2H3Cl Sensor) ME3-C2H3ClTechnical Specifications
| Model |
ME3-C2H3Cl |
| Package |
Plastic Package |
| Detection Range |
0～20ppm |
| Measurement Limit |
100ppm |
| Expected Life |
2 Year |
| Sensitivity |
（2.0±1.2）µA/ppm |
| Resolution |
0.5ppm |
| Temperature Range |
﹣20℃～50℃ |
| Pressure Range Standard Atmospheric Pressure |
±10﹪ |
| Response Time (T90） |
≤60S |
| Humidity Range |
15﹪～95﹪RH Non-Condensing |
| Zero Drift（﹣20℃～40℃） |
≤4ppm |
| Stability (/Month) |
＜5﹪ |
| Load Resistance (Recommended) |
10Ω |
| Repeatability |
＜2% of Output Value |
| Output Linearity |
Linear |
| Bias Voltage |
300mV |
