Product Introduction
-

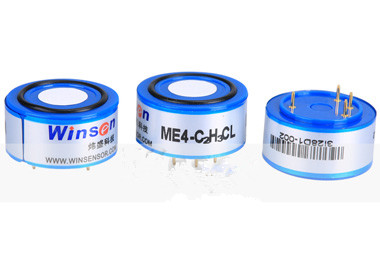

Vinyl Chloride Sensor (C2H3Cl Sensor) Product Description
-
The ME4-C2H3Cl sensor is a constant potential electrolytic C2H3Cl sensor. C2H3Cl and O2 undergo corresponding oxidation-reduction reactions on the working electrode and counter electrode, releasing charge to form a current. The magnitude of the generated current is proportional to the concentration of C2H3Cl. By measuring the current, the concentration of C2H3Cl can be determined.
-
Vinyl Chloride Sensor (C2H3Cl Sensor) Features
-
Low power consumption, high precision, high sensitivity, wide linear range, strong anti-interference capability, excellent repeatability and stability.
-
Vinyl Chloride Sensor (C2H3Cl Sensor) Main Applications
-
Widely suitable for detection of vinyl chloride in industry and environmental protection.
-
Vinyl Chloride Sensor (C2H3Cl Sensor) Technical Specifications
| Item | Parameter |
| Detection Gas | Vinyl Chloride (C2H3Cl)2H3Cl） |
| Range | 0～20ppm |
| Measuring Limit | 100ppm |
| Sensitivity | 2.0±1.2uA/ppm |
| Resolution | 0.5ppm |
| Response Time (T90) | ≤60s |
| Bias Voltage | 300mV |
| Load Resistance (Recommended) | 10Ω |
| Repeatability | <2% of output value |
| Stability (/month) | ＜5﹪ |
| Output Linearity | Linear |
| Zero Drift (-20°C to 40°C) | ≤4ppm |
| Temperature Range | -20℃～50℃ |
| Humidity Range | 15%-90% RH, no condensation |
| Pressure Range | Standard atmospheric pressure ±10% |
| Detection Life | 2 years (in air) |
