Product Introduction

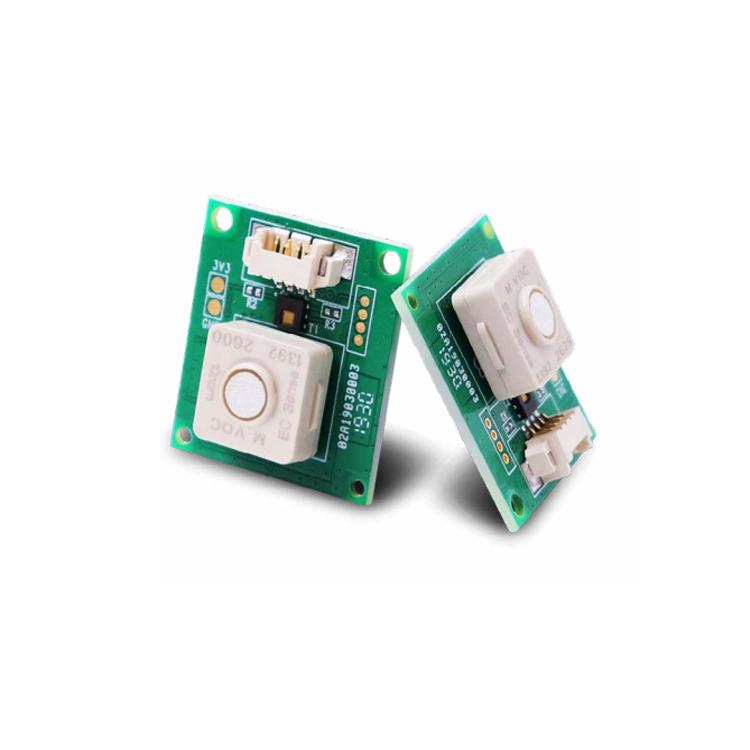

1. Overview of Volatile Organic Compound Gas Detection Module
The TB600B series TVOC detection module integrates many high-precision detection technologies from Germany, as well as the design philosophy of the German team. The core sensor uses the German EC Sense solid polymer sensor. It can replace our nose to accurately detect gas concentration, achieving precise gas monitoring. UART digital signal output saves customers the trouble of understanding sensor applications and calibration.
2. Features of Volatile Organic Compound Gas Detection Module
• Fast response, quick return to zero, plug and play
• Good anti-poisoning performance
• Easy to use, UART digital signal output
• German sensors durable and reliable
• Excellent accuracy, repeatability, linearity, and consistency
• Zero drift-free
• Strong anti-electromagnetic interference capability
• With fixed mounting holes for easy installation
• Sleep mode design, suitable for low-power IoT applications
• Independent temperature and humidity digital sensor output
• RoHS environmentally friendly design
3. Applications of Volatile Organic Compound Gas Detection Module
• Indoor home air quality pollution monitoring
• Fresh air online purification systems for home and commercial use
• Home fresh air systems and purifiers
• Air quality pollution monitoring in commercial places (offices, shopping malls, airports, train stations, gyms, hotels)
• Indoor temperature and humidity monitors
• Vehicle air purifiers
• Air monitoring in public transportation spaces
• HVAC systems
• Smart wearable devices (wristwatches, masks, phones)
• Health and sports equipment
• Range hoods and smart home products
• Laboratory fume hood systems
• Ultra-clean laboratory environmental monitoring
• Small drone environmental air quality monitoring
4. Technical Parameters of Volatile Organic Compound Gas Detection Module
| Detection Principle |
German EC Sense solid polymer electrochemical detection technology |
| Order Number |
04-TB600B-TVOC-10-01 |
| Detection Gas |
TVOC volatile organic compound gas |
| Detection Range |
0-10ppm; optimal detection range: within 5ppm; display resolution: 0.001ppm |
| Minimum Detection Limit |
0.01ppm |
| Full-scale accuracy error (typical) |
±5%F.S |
| Stabilization time (typical) |
First power-on in clean air <120 seconds |
| First power-on in non-clean air <240 seconds (except in environments with high concentration of pollutant gas) |
|
| Response time (typical) |
<3 seconds (T50: <40 seconds; T90: <80 seconds; T100: <180 seconds;) |
| Output Signal |
Standard output: 3.3V level UART digital signal (communication protocol see below) |
| Interface definition: VCC-red, GND-black, RX-yellow, TX-green |
|
| Baud rate: 9600, data bits: 8, stop bits: 1 |
