Product Introduction

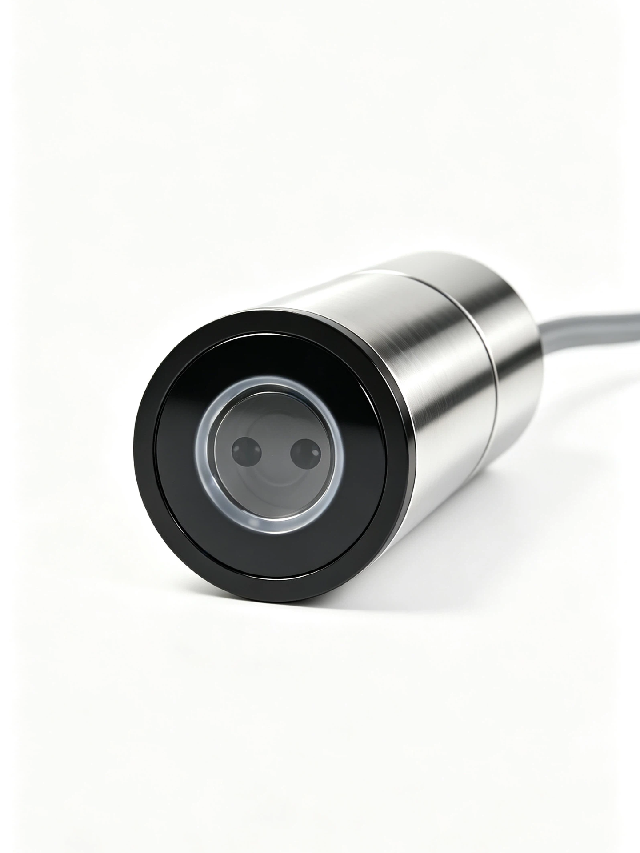

AMT-ZD300
Smart Turbidity Sensor
Intelligent turbidity sensor (AMT-ZD300) is a device usingRS485Communication interface and standardModbusprotocols. This sensor
The sensor uses wavelength860nminfraredLEDas the light source, not affected by the color of the water sample, using90°Scattering method, complies withISO 7027Intelligent water quality sensor with international standards and
USEPA 180.1US environmental protection standards. This sensor has the advantages of maintenance-free operation and strong anti-interference capability. It is widely used in surface water, municipal sewage,
Industrial wastewater, sewage treatment, water treatment plants, process control, and other fields
Fiber optic structure, strong resistance to external light interference;
Advanced circuit design, high measurement accuracy, stable performance;
Optical principle, high sensitivity, good selectivity, rapid measurement;
adopts90° angle scattered light principle, built-in temperature monitoring sensor;
Compact size, easy installation, capable of online uninterrupted water quality monitoring;
Model:AMT-ZD300
Measurement principle: scattered light method
Measurement range:0~20.00,0~100.0,0-1000.0NTU
Measurement accuracy:+3%F.S.or+1.5NTU、+3%FS.or+2NTU、+5%F.S.or ±3NTU0.01NTU/0.1°C
Resolution:0.1NTU/0.1°C、0.1NTU/0.1°C
Calibration method: Two-point calibration
Signal output:RS-485(Modbus/RTU)
Power supply:12~24V DC
Power consumption:0.2W@12V
Working environment:0~50°C，<0.2MPa
Housing material:POM、 ABS
Protection rating:IP68
Installation method: immersion installation,3/4”NPTPipe thread
Cable length:5meters, other lengths customizable
Temperature compensation: automatic temperature compensation(Pt1000)
Dimensions:D30mm,L185mm
Main Application Areas
- Drinking Water Treatment — Monitor turbidity in raw water, sedimentation, filtration, and distribution to ensure compliance with drinking water standards.
- Wastewater Treatment — Measure turbidity in influent, effluent, and process tanks to optimize treatment efficiency and meet discharge regulations.
- Industrial Process Water — Control turbidity in cooling water, boiler feedwater, and process water to protect equipment and ensure product quality.
- Environmental Water Monitoring — Track turbidity in rivers, lakes, and reservoirs for ecological assessment and pollution control.
- Aquaculture — Monitor water clarity in fish ponds and hatcheries to maintain healthy aquatic environments.
