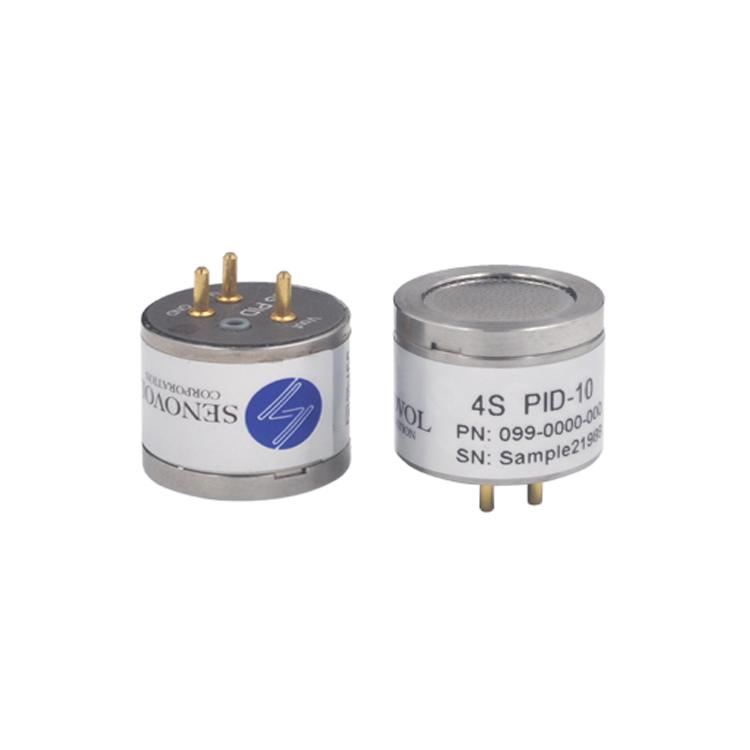

4 Series PID Sensor VOC SensorPID-10 Description:
This product is used to detect various volatile organic compounds (VOCs) and any compounds with ionization energy lower than 10.6 eV ultraviolet light photons.
4 Series PID Sensor VOC SensorPID-10 Product Performance:
| Working Principle | Photoionization Detection Principle |
| Ionization Energy | 10.6 eV |
| Measurement Range | 10 ppm |
| Sensitivity (20℃) | > 100 mV/ppm |
| Response Time (T90) | < 5 s |
| Baseline (20℃) | 70 ± 30 mV |
| Resolution | 1 ppb |
| Linearity | 0.045 V ~ 2.5 V linear |
Operating Environment:
| Temperature Range | -20℃ ~ 50℃ |
| Pressure Range | 1 ± 0.1 standard atmosphere |
| Humidity Range | 0% ~ 99% RH (non-condensing) |
4 Series PID Sensor VOC SensorPID-10Lifetime:
| Storage Temperature | 0℃ ~ 30℃ |
| Service Life | 5 years (excluding UV lamp and detector) |
| UV Lamp Life | 10000 hours |
| Storage Time | 15 months (in original packaging) |
| Warranty Period | 15 months |
Electrical Characteristics
| Operating Voltage | 3.5 V ~ 5.5 V (5 V recommended) |
| Output Voltage | 0.045 V ~ 2.5 V |
| Operating Current | < 80 mA @ 5 V |
| Safety Certification | CE |
Physical Properties
| Housing Material | Stainless steel housing |
| Weight | 15 grams |
Installation Instructions
Please connect the electrode pins correctly; incorrect connection will affect the normal operation of the sensor. Avoid contact with organic solvents, paints, oils, and high-concentration gases. Excessive mechanical pressure may cause housing deformation and sensor damage. If used in special environments, please contact us in advance.
Pin Definition
| Pin1 | Vcc | Power Positive |
| Pin2 | GND | Power Negative |
| Pin3 | Vout | Analog Signal Output |

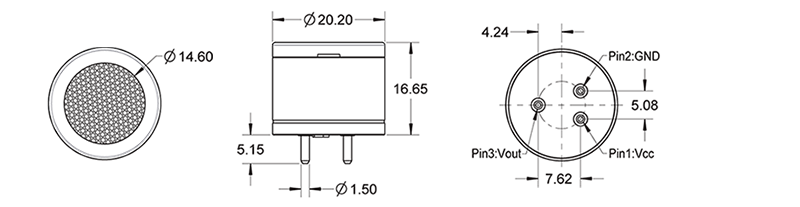

4 Series PID Sensor VOC SensorPID-10 Dimensions:
