Product Introduction

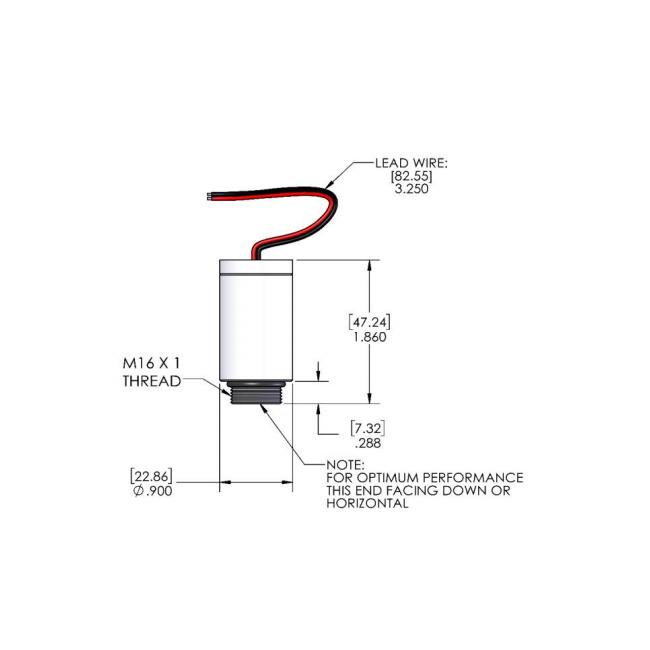

US AII Long-life Electrochemical Oxygen Sensor O2 SensorXLT-11-75-KE25F3 Applications:
0-100% range, used in anesthesia machines, oxygen analyzers, ventilators, etc.
US AII Long-life Electrochemical Oxygen Sensor O2 SensorXLT-11-75-KE25F3：
Replacement sensor for:KE-25F3
US AII Long-life Electrochemical Oxygen Sensor O2 SensorXLT-11-75-KE25F3 Parameters:
| Measurement Range |
0-100% O2 |
| Accuracy |
+ 5% |
| Signal Output |
10 - 15.5 mV |
| Full Scale |
+ 1% |
| Response TimeT90 |
13s |
| Drift% |
< 1% |
| Linearity |
+ 1% |
| Temperature Coefficient |
Compensation |
| Operating Temperature |
0 to 40°C |
| Storage Temperature |
5 to 25°C |
| Recommended Storage |
6 months |
| Operating Pressure |
Constant 5-30 PSIG |
| Humidity Non-condensing (Expected Life) |
10-99%RH |
| Expected Life |
36months |
| Flow Rate |
1-10 LPM |
| Warranty |
12months |
| Electrical Connector |
3.250" Wires |
| Packaging |
Polyetylene bag in 3" x 3" x 1.5" paper box |
(3) Once the signal output stabilizes following a step change in temperature.
(4) Recommended 5-35° C. Sensors may be stored at -10 to 55° C on an intermittent basis only.
