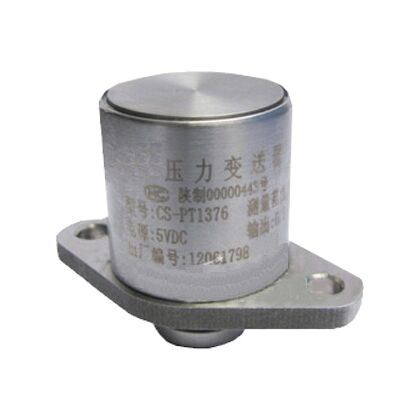

Automotive Pressure Transmitter - CS-PT1376
The CS-PT1376 pressure transmitter fully meets customer requirements in terms of stability, anti-interference, high and low temperature performance, shock and vibration resistance, and ease of installation. It has also applied for a national patent.
Product Introduction
1. Automotive Pressure Transmitter CS-PT1376 Product Overview:
The automotive pressure transmitter CS-PT1376 is a pressure transmitter specially developed for diesel vehicle (commercial and passenger) exhaust after-treatment systems (SCR systems). Diesel vehicle exhaust mainly emits NOX, which is converted into N2 and water vapor after SCR treatment, meeting Euro V (China V) standards and significantly improving environmental quality.
The CS-PT1376 pressure transmitter fully meets customer requirements in terms of stability, anti-interference, high and low temperature performance, shock and vibration resistance, and ease of installation. It has also applied for a national patent.
2. Automotive Pressure Transmitter CS-PT1376Main Parameters:
| Power Supply |
5VDC |
Pressure Range |
0～1.0MPa |
| Output Voltage |
0.5～4.5V |
Accuracy at Room Temperature |
1.0%F.S |
| Operating Temperature |
－40～85℃ |
Storage Temperature |
－40～100℃ |
| Overload Capacity |
200% Full Scale |
Response Time |
<10ms |
| Insulation Resistance |
≥100MΩ@50V |
Long-Term Stability |
±0.5%/FS/Year |
| Electrical Connection |
Direct Lead |
Connector and Housing Material |
Stainless Steel 316L |
| Enclosure Protection |
IP65 |
Pressure Type |
Gauge |
| Vibration/Shock |
10g/5...2000Hz X/Y/Z axes/20g, 11ms |
||
