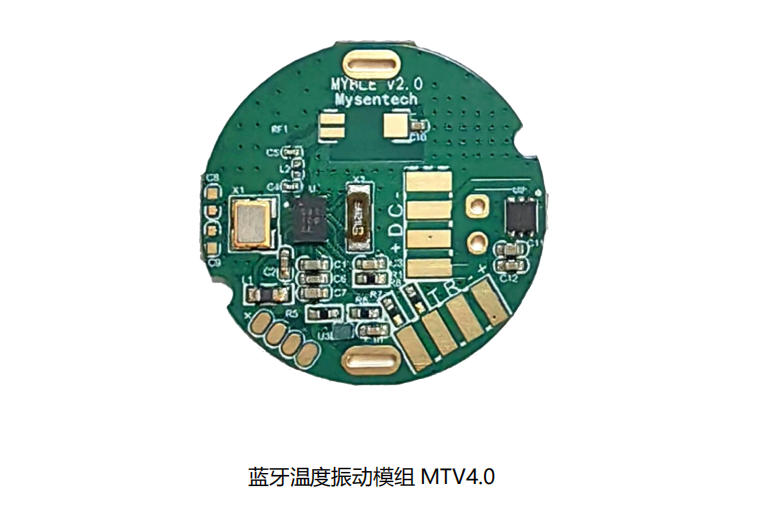

Bluetooth Temperature and Vibration Module - MTV4.0

Bluetooth protocol supports BLE5.1;
Operating temperature range -40℃~+85℃, customizable temperature measurement range based on application scenarios;
Low cost, BLE built-in MCU controls temperature acquisition, storage, and buttons;
Temperature acquisition frequency 1min/time (software configurable), data transmitted via Bluetooth to mobile phones and backend;
Supports Bluetooth breakpoint local caching/resume transmission, can store 2000 data records;
Ultra-low power Bluetooth SoC, low-power design for temperature measurement chip, operating current 1.43mA@1 minute acquisition interval, battery life 2 years;
Customized development and design available;
Embedded three-axis 1024-point FFT frequency analysis algorithm, can simultaneously analyze three-axis vibration frequency change trends.

Product Model: MTV4.0

Inquiry

shareShare

Product Introduction

The Bluetooth Temperature and Vibration Module - MTV4.0 is based on wireless Bluetooth BLE5.1 communication, using the high-precision programmable digital temperature series chips (T117B, etc.) independently developed by Minyuan. It includes high-precision three-axis MEMS gravity acceleration and temperature sensing, can output three-dimensional acceleration and temperature information, and embeds FFT frequency domain analysis. Mobile phones or other Bluetooth devices communicate with the module to read and display measurement data, then upload to the cloud platform. It can be widely used in wireless temperature measurement, wearables, cold chain logistics, and other fields.

I.Features of the Bluetooth Temperature and Vibration Module - MTV4.0:

Temperature Measurement

- Typical accuracy: ±0.5℃@-10℃~+85℃

- Resolution: 16bit

- Measurement range: -70℃~+150℃

Vibration measurement range: X/Y/Z three-axis vibration acceleration

Optional ranges: ±2/±4/±8/±16g (default ±4g)

Acceleration resolution: 0.1mg

Measurement accuracy: 1mg

Frequency resolution: default 0.1Hz, adjustable sampling frequency, up to 0.01Hz

Maximum sampling frequency: 1.6KHz

Minimum sampling frequency: 12.5Hz

Frequency analysis: embedded three-axis 1024-point FFT frequency analysis algorithm, can simultaneously analyze three-axis vibration frequency change trends

Monitoring frequency: default 1min interval, can actively push alerts on anomalies

Communication interface: BLE5.1

Maximum communication distance: 50 meters

Voltage range: 2V~5.5V

Operating temperature range: -55℃～+125℃

Average power consumption: <20μA@3V

Module size: Φ24mm

II.Applications of the Bluetooth Temperature and Vibration Module - MTV4.0:

Wireless temperature measurement

Wearables and cold chain logistics, etc.
