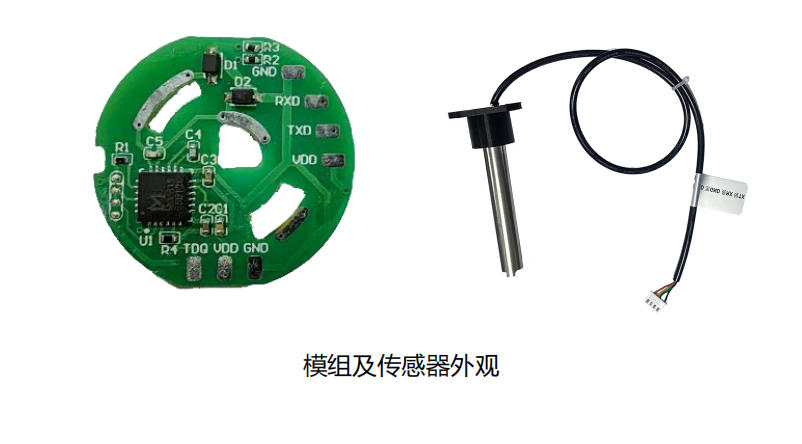

Capacitive Liquid Level Temperature Sensor - MOLT

Supply Voltage: DC 3.3V~5V (ripple 100mV)
Operating Current: <15mA@5V
Level Range: 0mm~70mm (customizable)
Level Accuracy: ±1mm
Operating Ambient Temperature: -20℃~+105℃
Temperature Measurement Accuracy: 1℃
Output Method: UART (Modbus protocol, baud rate 9600)
Module Dimensions: Φ22±0.2mm, thickness 1.6mm
Metal Concentric Tube: Φ15 x 100mm (customizable)

Product Model: MOLT

Product Introduction

The capacitive liquid level temperature sensor - MOLT (Minyuan Oil Level & Temperature) uses dedicated capacitive sensing chips MDC04 or MCP61, combined with a metal concentric circular detection electrode structure, to contact-measure the linear change of oil or aqueous solution level; temperature is collected via digital temperature chip M1820, and after embedded microprocessor temperature compensation and algorithm conversion of the measured capacitive level value, the level information is directly output.

I.Features of the Capacitive Liquid Level Temperature Sensor - MOLT:

II.Applications of the Capacitive Liquid Level Temperature Sensor - MOLT:

Power grid transformer oil

Industrial contact level detection applications such as automotive engine oil

Insertion-type level detection applications for aqueous solutions
