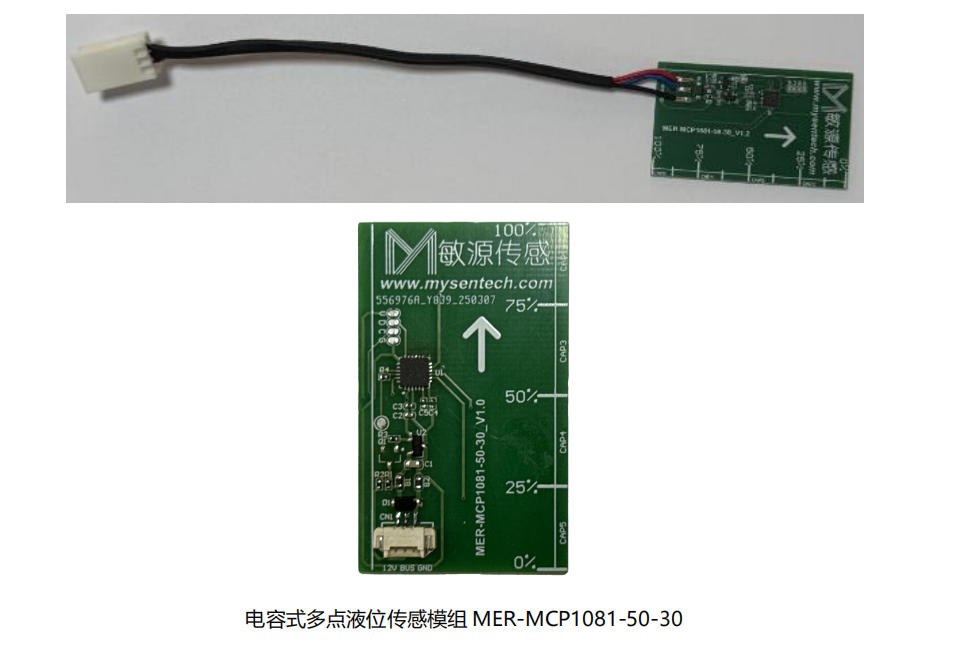

Capacitive Multi-Point Liquid Level Sensing Module - MER-MCP1081-50-30

Measuring viscous or wall-adhering liquids;
Measuring different types of liquids;
Measuring segmented liquid level changes;
Built-in temperature compensation, compensation range 0℃~+50℃;
Non-contact measurement, easy installation

Product Model: MER-MCP1081-50-30

Product Introduction

The Capacitive Multi-Point Liquid Level Sensing Module (MER-MCP1081-50-30) is based on the ten-channel multi-mode wideband digital capacitance processor chip MCP1081S independently developed by Minsource, integrating capacitance measurement, acquisition, microprocessor algorithms, temperature sensing and compensation, and interface communication. It has high sensitivity to liquids inside non-metallic containers; the unique capacitive sensing electrode design and software algorithms effectively overcome technical challenges such as thick container walls, viscous liquids, wall-adhering liquids, and differences in liquid types.

I.Capacitive Multi-Point Liquid Level Sensing Module -Features of MER-MCP1081-50-30:

Supply voltage: 10V~14V

Sensing distance: 0mm~6mm for non-metallic media

Liquid level measurement range: 0mm~50mm

Liquid level accuracy: ±3mm

Levels: 0~4 levels

Operating temperature range: -40℃~+85℃

Output method: Single bus

Operating power consumption: 10mA@12V

Dimensions: 50*30*5mm (length*width*height); uses a 3-pin terminal with solder wire output spacing

II.Applications of Capacitive Multi-Point Liquid Level Sensing Module - MER-MCP1081-50-30:

Smart water appliances such as coffee machines, water dispensers, steam ovens, etc.

Household/industrial products such as humidifiers, dehumidifiers, washing machines, etc.
