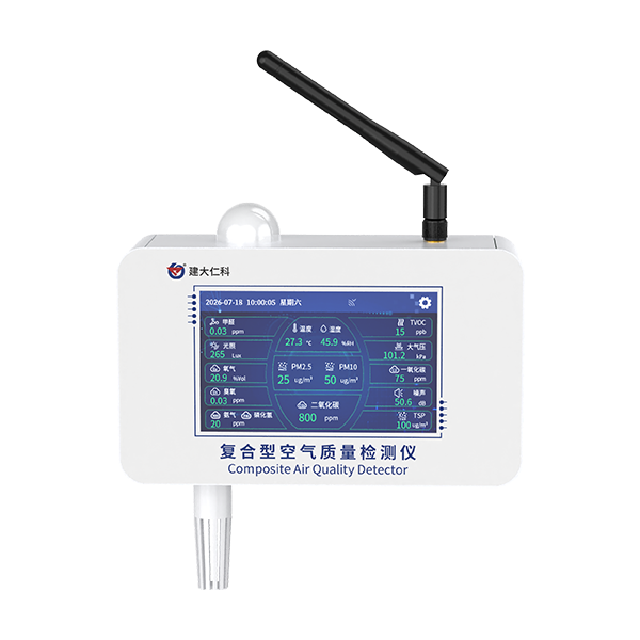

Product Introduction
Integrates multiple measurement elements in one, can simultaneously integrate up to 15 measurement elements.
4.3-inch large-screen Chinese LCD display, simple and friendly interface; touch screen control for simple and intuitive operation.
Can measure temperature, humidity, PM2.5, PM10, TSP, atmospheric pressure, light, noise, odor, TVOC, CO2, formaldehyde, O3CO, O2, SO2, NO2, H2, H2S, NH3 and other multiple elements.
Wall-mounted installation, easy to install.
| DC Power Supply (Default) | DC 10-30V |
| Maximum power consumption | 485, 4G, ETH type: 1.5W (24V DC power supply) WIFI type: 1.6W (24V DC power supply) |
| Detection parameters | Temperature, humidity, PM2.5, PM10, TSP, atmospheric pressure, light, noise, odor, TVOC, CO2, formaldehyde, O3, CO, O2, SO2, NO2, H2, H2S, NH3, smoke |
| Working Environment | Temperature -10℃-55℃; Humidity 0~95%RH non-condensing TSP element: Temperature -10℃-55℃; Humidity 0~70%RH |
| 信号输出 | 485 type, ETH type, WIFI type, 4G type |
| 安装方式 | Wall-mounted |
