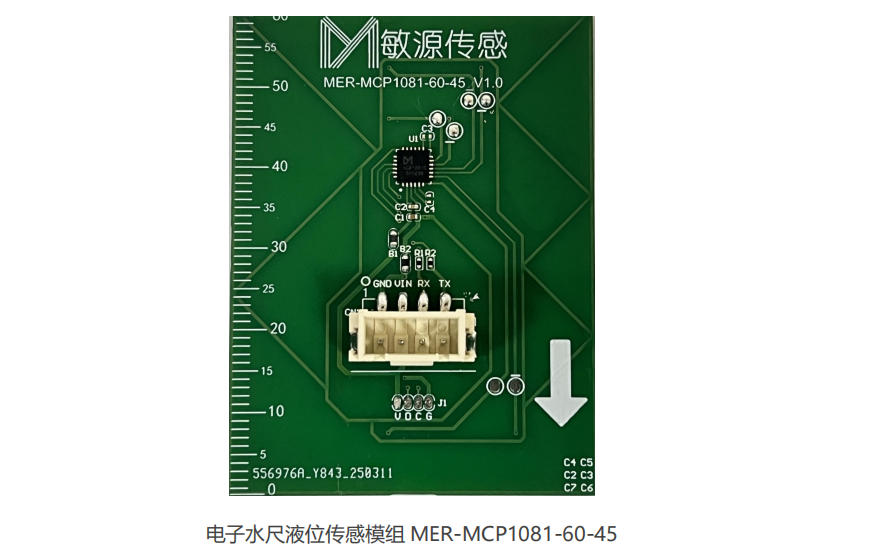

Electronic Water Gauge Liquid Level Sensing Module - MER-MCP1081-60-45

Can measure continuous/10-level liquid level changes online
Drawer push-pull proximity and presence detection
Built-in temperature compensation, compensation range 0℃~+70℃
Module firmware algorithm can be upgraded online (IAP)
Non-contact measurement, easy installation

Product Model: MER-MCP1081-60-45

Product Introduction

The electronic water gauge liquid level sensing module - MER-MCP1081-60-45 is based on MinYuan's self-developed ten-channel multi-mode broadband digital capacitance processor chip MCP1081S, integrating capacitance measurement, acquisition, microprocessor algorithm, temperature compensation, interface communication and other functions, with high sensitivity to liquids inside non-metallic containers; the unique capacitive sensing electrode design and software algorithm can effectively overcome technical difficulties such as thick container walls, liquid wall adhesion, scale, and water quality differences, and can adapt to 0~1mm different air gaps, especially suitable for strong penetration scenarios where liquid level needs to be measured through the container shell and air gap, such as continuous liquid level measurement and push-pull presence judgment of steam oven water tank drawers; the back uses grid shielding for better anti-interference effect.

I.Features of Electronic Water Gauge Liquid Level Sensing Module - MER-MCP1081-60-45:

Measurement Range:

Liquid Level: 0~60mm

Temperature: -40℃~+85℃

Typical Accuracy:

Liquid Level: accuracy 5mm, resolution 1mm, continuous liquid level, 10-level liquid level

Sensing Distance: 0mm~10mm non-metallic medium

Communication Interface: UART (MODBUS protocol) data output

Supply Voltage: 2V~5V

Operating Power Consumption: 4.12mA@5V

Operating Temperature Range: -40℃~+85℃

Module Dimensions: 60mm*45mm*8mm (L*W*H)

Port Specification: 2.54-4PLTDK, 4-pin vertical SMD interface

II.Applications of Electronic Water Gauge Liquid Level Sensing Module - MER-MCP1081-60-45:

Suitable for strong penetration scenarios requiring liquid level measurement through container shell and air gap

Such as continuous liquid level measurement and push-pull presence judgment of steam oven water tank drawers
