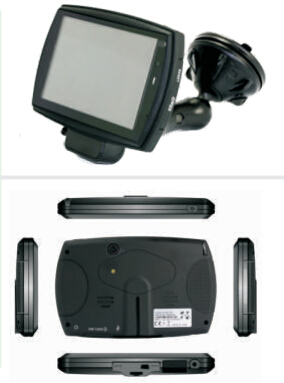

FALCOM AVL docking device JAZZ-2Product description

FALCOM Expanding itsAVLproduct line by adding the newJAZZ-2device as a graphical user interface to its fleet management solutions for navigation and communication. DockingJAZZ-2 to anAVLdevice supports two-way communication between drivers and dispatchers, including text and alert messages. ViaGPRSsending new destination or route information directly from headquarters to several vehicles will save time and costs for both parties. This system enhancement is a significant improvement in handling andAVLversatility of devices. The touchscreen convinces with excellent readability and wide viewing angle.JAZZ-2 Without navigation software. Generally, any user-installed Android-compatible map software can be used as car navigation.

FALCOM AVL docking device JAZZ-2Features

AVL device graphical interface
• 5" color TFT touchscreen (800x480, capacitive touch)
•CPU 1GHz / 256 MB RAM / 2 GB Flash
• High-sensitivity GPS receiver, 64 channels
• USB programming cable
• 2300 mAh rechargeable battery
•Android 4.0
• Vehicle mount with integrated connector
• 1 UCOM connector (power, RS232 for AVL devices)
• Rugged design / SIM card slot
• 2 versions available: GPS only; GPS / WIFI / Bluetooth (SPP on Android) / GPRS

FALCOM AVL docking device JAZZ-2Technical specifications

General	CPU 1GHz 256MB RAM  2GB FLASH Android version 4.0 Quad-bandGSM 850/900/1800/1900 Bluetooth V2.1with data transmission (SPP profile) WLAN - Wifi IEEE 802.11 b/g High-sensitivity GPS receiver, 64 channels
Display	5“ Color TFTcapacitive touchscreen Resolution: 800 x 480 pixels
Physical characteristics	Dimensions (LxWxH): 149 x 94 x 21mm  Weight: ca. 252 g
Electrical characteristics	USB 2.0 Compatible 5 V / 470 mA
Battery	2300 mAhBuilt-in rechargeable battery
Temperature range	Operating: -10 °C ~ +60 °C (Humidity 90%) Storage: -25 °C~ +70 °C (Humidity 95%)
Interfaces	Mini-USB Ports (Charging via charging cradle) ext. AVL DockingRS232 3,3 V TTL 2,5mm mini Headphone jack SIM Card slot On/Off/Back key Two-color LEDindicator(Red/Green)
Antenna	Internall
Accessories	Vehicle mounting kit (Vehicle suction mount) AVL Car connection kit (Base withUCOM connector1m connection cable forAVL device) RS232Car connection (Base withRS232 andmini-USB port1m cable)

FALCOM AVL docking device JAZZ-2Requirements

Windows PCAndroid programming	Operating system: Windows XP / Vista or Windows 7, Android SDK(SDK), Eclipse IDE or other software development environment
Other	Navigation software and maps Fleet management applications SIMSIM card usageGSM/GPRSService
