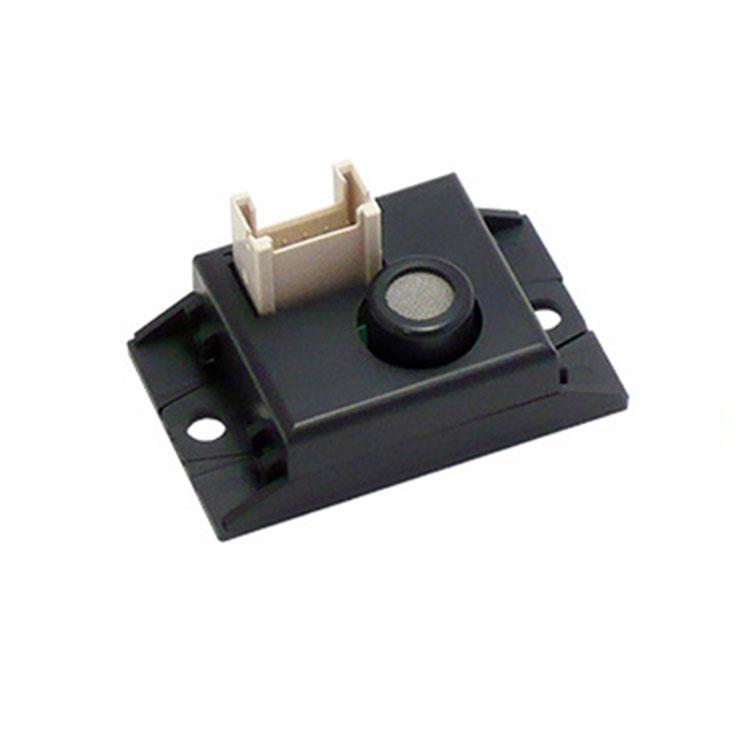

Japan FIGARO Combustible Gas Pre-calibrated Module - CGM6812-B00
Detection Range: 0 ~ 14000ppm Hydrogen (also detects methane, isobutane, and propane)
Voltage Output: 1~4.5V DC (max up to VIN)
Response Time (T90) for 4000ppm Hydrogen: ≤30 seconds
Operating Conditions: -10°C ~ +60°C, 20~95%RH (non-condensing)
Storage Conditions: -10°C ~ +60°C, 20~95%RH
Product Introduction
I.CGM6812-B00Description of Combustible Gas Sensor Pre-calibrated Module:
Combustible Gas Sensor Pre-calibrated ModuleCGM6812-B00 is a new module equipped with Figaro catalytic combustion typecombustible gas sensorTGS6812, featuring excellent durability and high stability. This module provides an analog voltage output proportional to hydrogen concentration. The CGM6812-B00 module also features a moisture-proof coating, allowing reliable use in environments requiring waterproofing and insulation. Additionally, the module can detect sensor disconnection faults. The module operates over a wide temperature range of -10°C to +60°C. Since the TGS6812 gas sensor can detect methane, LP gas, and hydrogen, this module is suitable for leak detection of hydrogen, a combustible gas, in stationary fuel cells.
II.CGM6812-B00Features of Combustible Gas Sensor Pre-calibrated Module:
Analog linear output proportional to gas concentration
Maintenance-free
Compact size
RoHS compliant
III.CGM6812-B00Applications of Combustible Gas Sensor Pre-calibrated Module:
Detecting gas leaks in fuel cell systems
Hydrogen and combustible gas leak detectors
IV.CGM6812-B00Specifications of Combustible Gas Sensor Pre-calibrated Module:
| Product Name | Combustible Gas Sensor Module |
| Model | CGM6812 -B00 |
| Gas Sensor | TGS6812(Catalytic Combustion Type) |
| Detection Range | 0 ~ 14000ppm Hydrogen (also detects methane, isobutane, and propane) |
| Voltage Output (Vconc) | 1~4.5V DC (max up to VIN) |
| Conversion to Hydrogen Concentration | Vout=[Hydrogen Concentration (ppm)/4000] + 1.0 |
| Fault | Vconc = 0~0.1V (*) |
| Factory Set Output | Vconc in air: 1.0±0.2V |
| Vconc in 8000ppm Hydrogen: 3.0±0.2V | |
| Response Time (T90) for 4000ppm Hydrogen | ≤30 seconds |
| Alarm Time (VCONC<2.0V) | ≤30 seconds (time required for Vconc <2.0V in air) |
| Operating Conditions | -10°C ~ +60°C, 20~95%RH (non-condensing) |
| Storage Conditions | -10°C ~+60°C , 20~95%RH |
| Input Voltage (VIN) | 5.0±0.2V DC |
| Power Consumption | ≤1.5W |
| Net Weight | ≤15g |
| Dimensions | 50 x 30 x 25.3mm |
| Mounting Requirements | Due to orientation requirements, the two ear holes should be mounted horizontally |
| Standard Test Conditions | Ambient Conditions: 20±2°C , 65±5%RH |
| Circuit Conditions | 5.0±0.2V DC |
| Pre-test Adjustment | ≥10 minutes |
