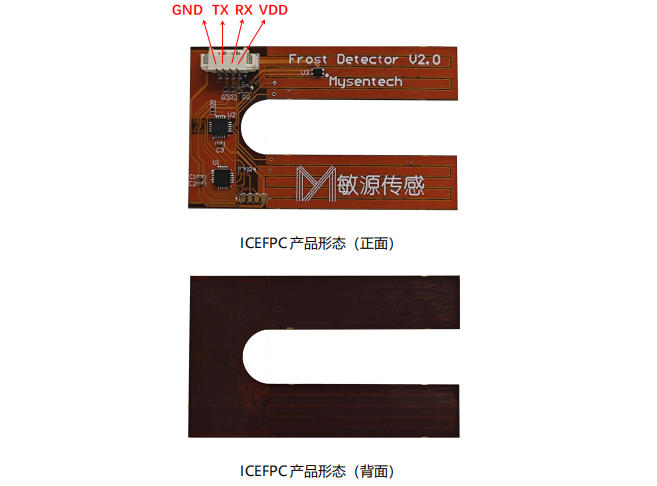

Frost Electrode Pad - ICEFPC

Operating Temperature: -40°C to +85°C
Supply Voltage: 2V to 5.5V
Operating Power Consumption: 4.5mA @ 3.3V
Detectable Frost Thickness Range: ≤10mm
Measurement Resolution: 1mm
Communication Interface: UART
Product Dimensions: 50mm*30mm*3.95mm (L*W*H)
Installation Method: Attach tightly to refrigerator fins
Socket Specification: 1.25mm 4-pin horizontal mount

Product Model: ICEFPC

Product Introduction

The frost electrode pad - ICEFPC is a smart sensor based on capacitive sensing, integrating the high-precision differential capacitive sensing chip MDC04 from MINSource. It determines frost thickness changes through dielectric constant variations, with frost thickness proportional to capacitance value. The sensor embeds an MCU detection processor to effectively filter out temperature, electromagnetic, and other interferences, thereby quantifying frost accumulation. It is widely used in frost detection scenarios such as refrigerator evaporators.

I.Features of Frost Electrode Pad - ICEFPC:

II.Applications of Frost Electrode Pad - ICEFPC:

Frost detection scenarios for refrigerators, evaporators, etc.
